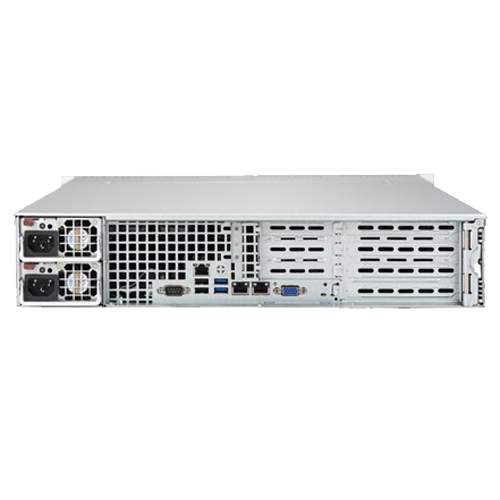

Invento i612 Purley Series

i612

Invento i612 Purley Series

Salient Features
  • Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2933MHz; 6 DIMM slots
  • 4 PCI-E 3.0 x8 (FHFL) slots, 1 PCI-E 3.0 x8 (LP) slot
  • 8 Hot-swap 3.5" SATA3 drive bays
  • 2 x 10GBase-T ports with Intel X772 + X557
  • 3 Hot-swap 8cm PWM cooling fans
  • 500W Redundant Platinum Level power supplies

Specification

Model i612
Processor Support 1 X Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
Core Logic Intel® C622 chipset
Memory
  • 6 x DIMM slots
  • Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2933MHz
PCIe Expansion Slot
  • 4 PCI-E 3.0 x8 (FHFL) slots
  • 1 PCI-E 3.0 x8 (LP) slot
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays 8 Hot-swap 3.5" SATA3 drive bays
Networking
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) ports
  • USB: 2 USB 3.0 ports (rear), 2 USB 2.0 ports (rear)
  • Video: 1 VGA Connector
  • Serial Port / Header: 2 COM ports (1 rear, 1 header)
  • DOM: 2 DOM (Disk on Module) ports with built-in power
Power Supply 500W Redundant Platinum Level power supplies
Dimension / Form Factor 2U Rackmount
