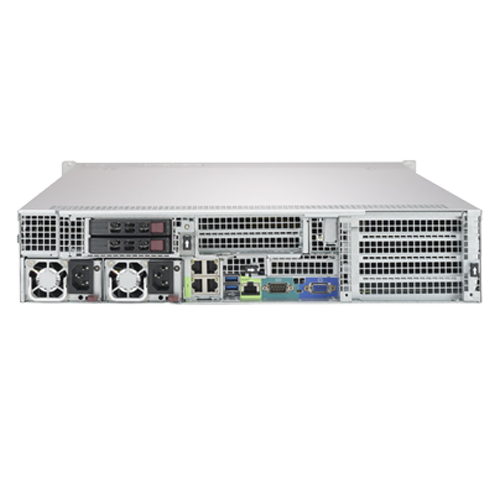

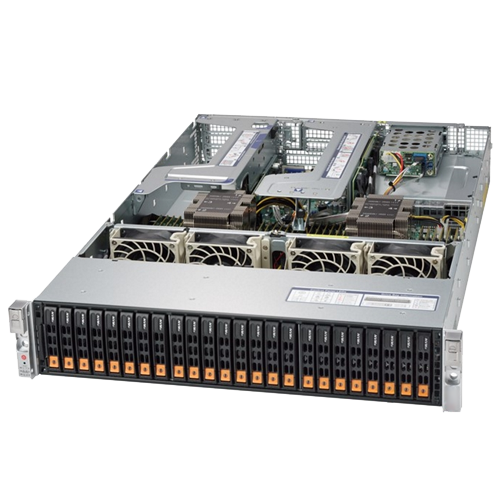

Invento i6129 Purley Series

i6129

Invento i6129 Purley Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, DDR4-2933MHz, in 24 DIMM slots
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
  • 3 USB 3.0 ports (2 rear, 1 Type A)
  • 4 10GBase-T LAN ports
  • ASPEED AST2500 BMC
  • 24 Hot-swap 2.5" drive bays
  • 1600W High efficiency (96%) Redundant PSU; Titanium Level

Specification

Model i6129
Processor Support 2 x 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,Dual UPI up to 10.4GT/s Support CPU TDP 70-205W
Core Logic Intel® C621 chipset
Memory
  • 24 x DIMM slots;
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
Expansion Slot
  • PCI-E Slots:
    • 2 PCI-E 3.0 x16 (FH, 10.5" L)
    • 1 PCI-E 3.0 x8 (LP)ot,
  • M.2:
    • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
    • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card
RAID Options Storage: SATA3 (6Gbps); RAID 0, 1, 5, 10 per node
Drive Bays
  • 24 Hot-swap 2.5" drive bays: 24 NVMe (4 hybrid ports - SAS3 via opt. AOC)
  • 2 rear Hot-swap 2.5" SATA drive bays
Network Controller
  • 4 x 10GBase-T ports via Intel® X550 Ethernet Controller
  • 1 x Realtek RTL8211E PHY (dedicated IPMI)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500
Graphics ASPEED AST2500 BMC
Cooling Feature 4 Heavy duty 8cm PWM fans
Onboard I/O
  • NVMe: 24 NVMe ports
  • USB: 3 USB 3.0 ports (2 rear, 1 Type A)
  • Video Output: 2 VGA ports (1 rear, 1 onboard)
  • Serial Port / Header: 1 Serial port
  • TPM: 1 TPM Header
Power Supply 1600W High efficiency (96%) Redundant Power Supply unit; Titanium Level 80PLUS (96% Efficiency)
Dimension / Form Factor 2U Rackmount
