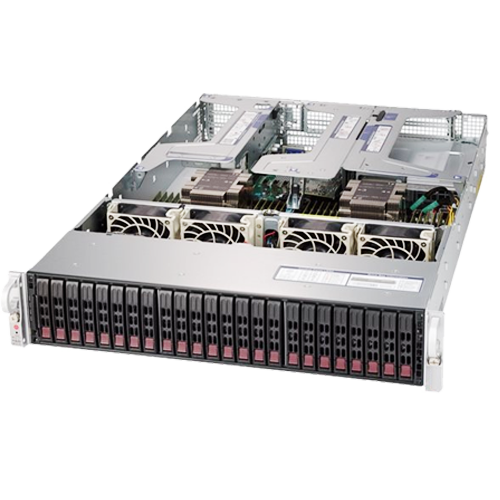

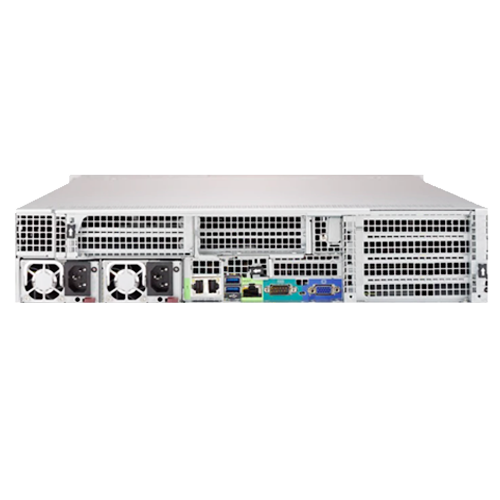

Invento i613 Purley Series

i613

Invento i613 Purley Series

Salient Features
  • Flexible Networking Options
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L), 5 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP), 1 PCI-E 3.0 x8 slot(internal LP)
  • 24 Hot-swap 2.5" drive bays: 24 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe)
  • 4 x 1GbE LAN ports via Intel i350
  • 4 Heavy duty 8cm PWM fans
  • 1000W Redundant Power Supplies Titanium Level (96%)

Specification

Model i613
Processor Support 2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 24 x DIMM slots;
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 1 PCI-E 3.0 x16 slot (FH, 10.5" L),
  • 5 PCI-E 3.0 x8 slots (FH, 10.5" L),
  • 1 PCI-E 3.0 x8 slot (LP),
  • 1 PCI-E 3.0 x8 slot (internal LP)
RAID Options SAS: SAS3 (12Gbps) via expander + Broadcom 3108/3008 AOC
Drive Bays 24 Hot-swap 2.5" drive bays: 24 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe)
Networking
  • 4 RJ45 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Power configurations ACPI Power Management
Onboard I/O
  • SAS: 24 SAS3 ports support via expander and storage Add-on Cards
  • USB: 3 USB 3.0 ports (2 rear, 1 Type A)
  • Video: 1 VGA Connector
  • Serial Header: 1 Serial header
  • DOM: 2 DOM (Disk on Module) ports
Power Supply 1000W Redundant Power Supplies Titanium Level (96% Efficiency)
Dimension / Form Factor 2U Rackmount
