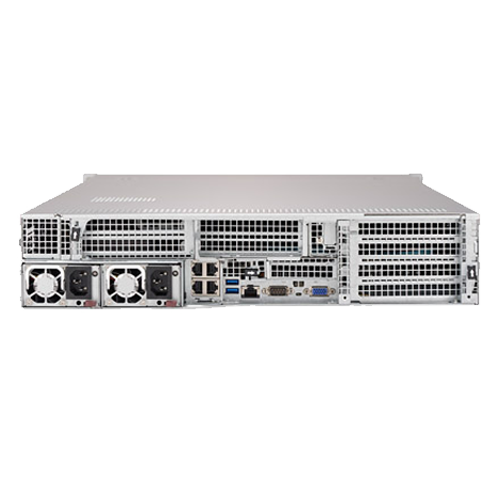

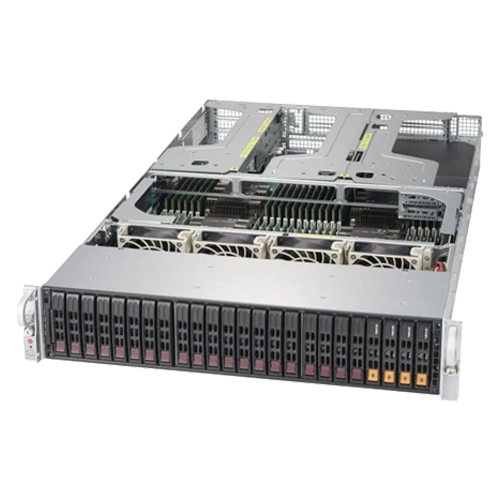

Invento i613e Purley Series

i613e

Invento i613e Purley Series

Salient Features
  • Quad Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 48 DIMM slots
  • 5 PCI-E 3.0 x8 slots, 6 PCI-E 3.0 x16 slots
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 4 Hybrid ports with NVMe support via extra Add On card
  • 4 GbE LAN ports via Add On card, 1 dedicated IPMI LAN port
  • 4 Heavy duty 8cm PWM fans
  • 1600W Redundant Power Supplies Titanium Level (96%)

Specification

Model i613e
Processor Support 4 X 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic Intel® C621 chipset
Memory
  • 48x DIMM slots;
  • Up to 12TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 5 PCI-E 3.0 x8 slots,
  • 6 PCI-E 3.0 x16 slots
RAID Options SATA: SATA3 via Intel C621; RAID 0, 1, 5, 10
Drive Bays
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays
  • Optional 24 SAS3 ports via Add On Card
  • Optional 20 SAS3 ports via Add On Card + 4 NVMe ports via Add On Card
Networking
  • 4 RJ45 GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
Cooling Features 4 Heavy duty 8cm PWM fans
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Power configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
Onboard I/O
  • SATA: 12 SATA3 (6Gbps) ports
  • SAS: 24 SAS3 ports support via optional Add-on Cards
  • NVMe: 4 Hybrid ports with NVMe support via Add-on Cards
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA Connector
  • Serial Port / Header: 1 COM port (rear)
  • DOM: 2 DOM (Disk on Module) ports
Power Supply 1600W Redundant Power Supplies Titanium Level 80PLUS(96% efficiency)
Dimension / Form Factor 2U Rackmount
