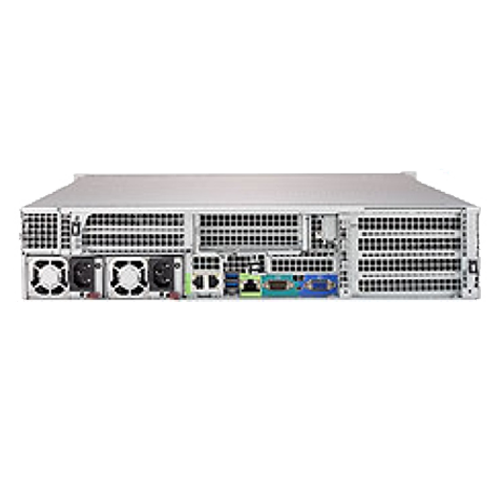

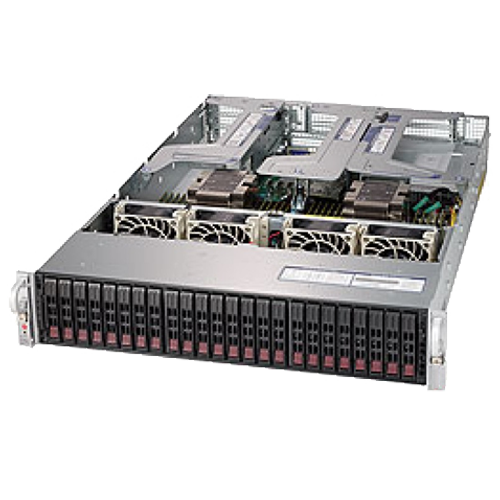

Invento i614 Purley Series

i614

Invento i614 Purley Series

Salient Features
  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4- 2400MHz; 16 DIMM slots
  • 6 PCI-E 3.0 x16 slots (GPU/MIC, opt.), 1 PCI-E 3.0 x8 (in x16) low-profile slot
  • Intel X540 Dual port 10GBase-T
  • 10 Hot-swap 2.5" SATA Drive Bays
  • 5 heavy duty cooling fans
  • 2000W Redundant Power Supplies Platinum Level (94%+)

Specification

Model i614
Processor Support 2 x Intel® Xeon® processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
Core Logic Intel® C621 chipset
Memory
  • 16 DIMM slots;
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4- 2400MHz
PCIe Expansion Slot
  • 6 PCI-E 3.0 x16 slots (GPU/MIC, opt.),
  • 1 PCI-E 3.0 x8 (in x16) low-profile slot
RAID Options SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays 10 Hot-swap 2.5" SATA Drive Bays
Networking
  • 2 RJ45 10GBase-T ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) ports
  • USB: 4 USB 3.0 ports (2 rear, 2 via header), 2 USB 2.0 ports (2 via headers)
  • Video: 1 VGA Connector
  • Serial Port: 1 Serial header
Power Supply 2000W Redundant Power Supplies Platinum Level (94%+) 80PLUS
Dimension / Form Factor 2U Rackmount
