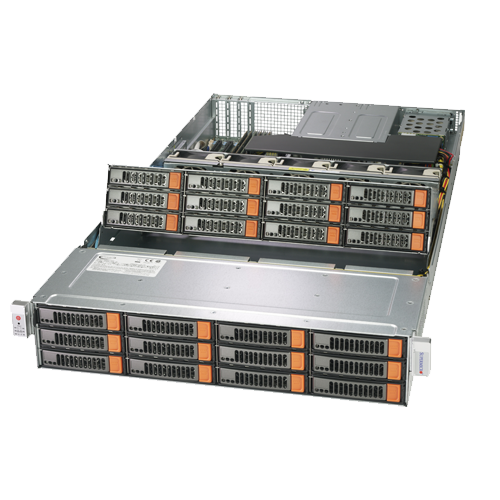

Invento i614e Purley Series

i614e

Invento i614e Purley Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; 24 DIMM slots
  • 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 Network add on card support (flexible networking) Note: must bundle with Network card
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays;2 hot-swap 2.5" drive bays (rear)
  • 5x 8cm high-performance PWM fans
  • 1600W Redundant Power Supplies Titanium Level (96%)

Specification

Model i614e
Processor Support 2 X 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP 70-165W
Core Logic Intel® C621 chipset
Memory
  • 24 x DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x8,
  • 1 Network add on card support (flexible networking)
RAID Options
  • SAS: SAS3 (12Gbps) via Broadcom 3108; HW RAID RAID 0, 1, 5, 6, 10,50, 60
  • SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays;

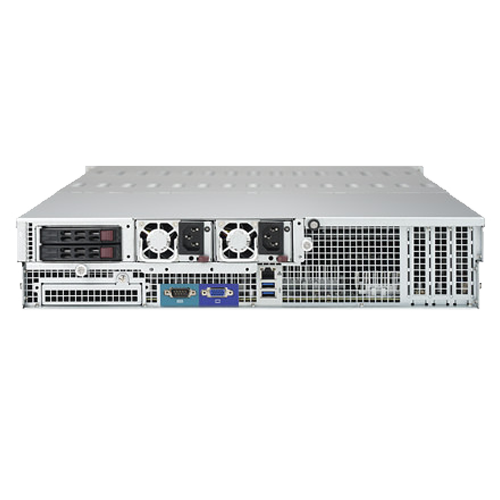

  • 2 hot-swap 2.5" drive bays (rear)
Networking
  • 2 Flexible LAN expansion via SIOM module
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Cooling Feature 5x 8cm high-performance PWM fans
Onboard I/O
  • SATA: 8 SATA3 (6Gbps) ports
  • USB: 2 USB 3.0 ports (rear) 1 Type A
  • Video: 1 VGA D-Sub connector port
  • Serial Port / Header: 1 Fast UART 16550 port / 1 Header
Power Supply 1600W Redundant Power Supplies Titanium Level 80PLUS (96%)
Dimension / Form Factor 2U Rackmount
