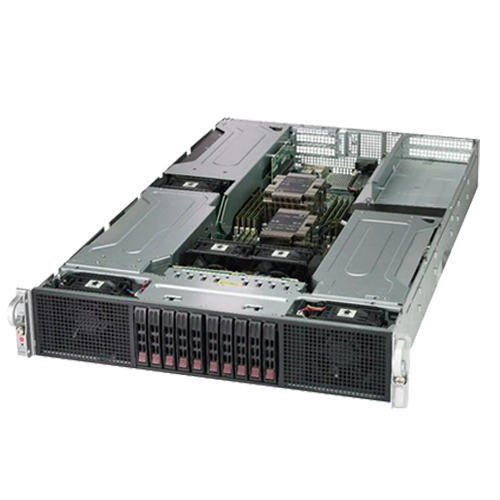

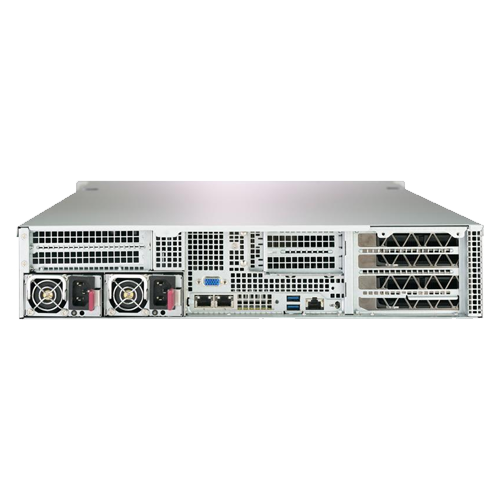

Invento i616 Purley Series

i616

Invento i616 Purley Series

Salient Features
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, 16 DIMM slots
  • Total GPU Supports up to 6 Numbers
  • 6 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x8 (in x16) slots
  • 8 Hot-swap 2.5" SAS/SATA drive bays, 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
  • 5x 8cm heavy duty fans
  • 2000W Redundant Power Supplies Platinum Level (94% efficiency)

Specification

Model i616
Processor Support 2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 16 x DIMM slots
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 6 PCI-E 3.0 x16 slots,
  • 1 PCI-E 3.0 x8 (in x16) slots
RAID Options SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays
  • 8 Hot-swap 2.5" SAS/SATA drive bays,
  • 2 Hot-swap 2.5" SAS/SATA/NVMe drive bays
Networking 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Cooling Feature 5 x 8cm heavy duty fans
Power configurations ACPI / APM Power Management
Onboard I/O
  • SATA: 2 SATA3 (6Gbps) ports, 2 miniSAS ports
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA port
  • Serial Header: 1 Fast UART 16550 header
System Dimension
(W x H x D)		 437mm x 89mm x 787mm
Power Supply 2000W Redundant Power Supplies Platinum Level (94%) 80PLUS
Dimension / Form Factor 2U Rackmount
