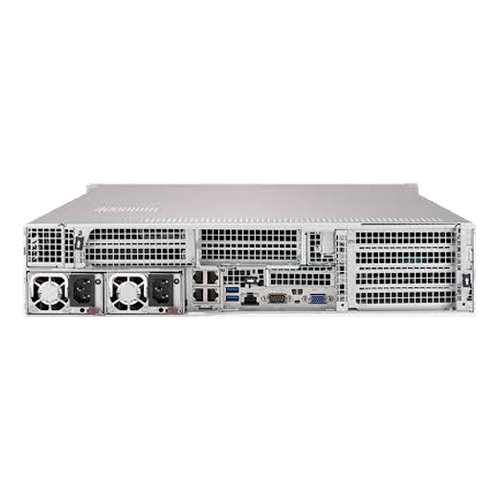

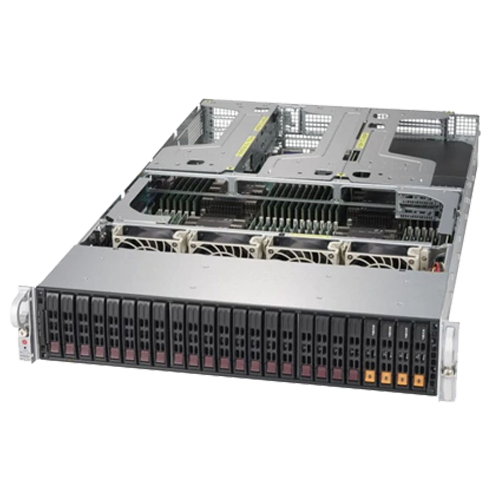

Invento i621 Purley Series

i621

Invento i621 Purley Series

Salient Features
  • Flexible Connectivity Options
  • Quad socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
  • Up to 6TB 3DS LRDIMM, up to DDR4-2666MHz; 48 DIMM slots
  • 5 PCI-E 3.0 x8 slots, 6 PCI-E 3.0 x16 slots
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 4 Hybrid ports with NVMe support via extra Add on card
  • Flexible 4 GbE LAN ports via Add on card, 1 dedicated IPMI LAN port
  • Optional up to 2 Active Cooling GPUs
  • 4x 8cm heavy duty fans
  • 1600W Redundant Power Supplies Titanium Level (96%)

Specification

Model i621
Processor Support 4 X Intel® Xeon® Scalable Proc essors, 3 UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 48 x DIMM slots;
  • Up to 6TB 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 5 PCI-E 3.0 x8 slots and
  • 6 PCI-E 3.0 x16 slots
RAID Options SAS: SATA3 via Intel C621; RAID 0, 1, 5, 10
Drive Bays 24 Hot-swap 2.5" SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 4 Hybrid ports with NVMe support via extra Add on card
Networking
  • 4 RJ45 GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Power Configuration
  • ACPI Power Management
  • Power-on mode for AC power recovery
Onboard I/O
  • SATA: 12 SATA3 (6Gbps) ports
  • SAS: 24 SAS3 ports support via optional Add-on Cards
  • NVMe: 4 Hybrid ports with NVMe support via AOC
  • USB: 2 USB 3.0 ports (rear)
  • Video: 1 VGA Connector
  • Serial Port / Header: 1 COM port (rear)
  • DOM: 2 DOM (Disk on Module) ports
Power Supply 1600W Redundant Power Supplies Titanium Level 80 PLUS (96%)
Dimension / Form Factor 2U Rackmount
