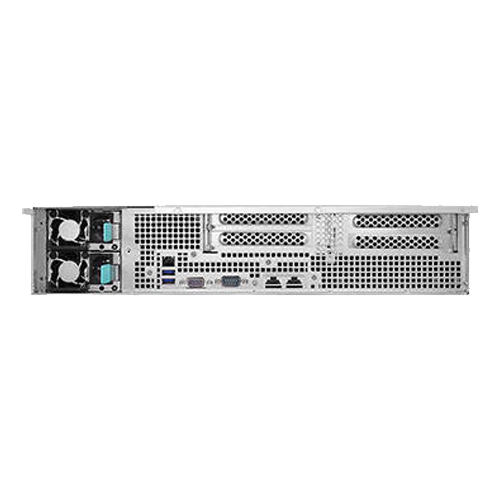

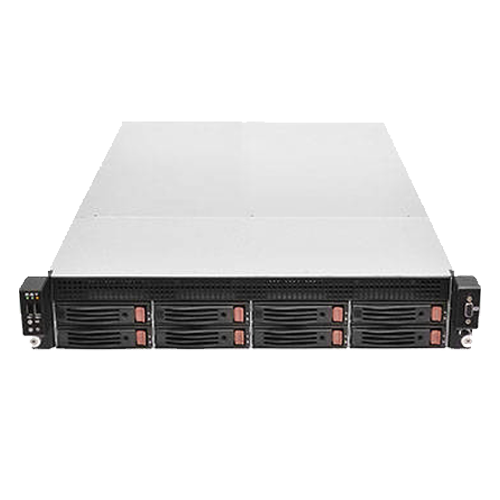

Invento i622 Series

i622

Invento i622 Series

Salient Features
  • Dual Socket LGA 2011 R3 support Intel® Xeon® processor E5-2600 v3/v4 series
  • 16 DIMM Slots; Supports Quad channel DDR4 2400/2133/1866/1600 RDIMM AND LR DIMM
  • 2 PCIe3.0 x16, 1 M.2 Slots
  • 1 (IPMI mg) Lan port (RJ45)
  • 8 Bay 3.5" SATA HDD (6Gb/s) Bays
  • 4 middle cooling PWM Fan(s)
  • ACPI 2.0 Compliance Wake Up Events
  • 750W Redundant Gold/Platinum Level Power Supply (90-92% Efficiency)

Specification

Model i622
Processor Support 2 x Support Intel® Xeon® processor E5-2600 v3 &v4 series
Core Logic Intel® C612 Chipset
Memory
  • 16 DIMM slots
  • Quad Channel memory technology
  • Supports 2400/2133/1866/1600 R DIMM, and LR DIMM*
*Only E5-2600 V4 CPUs support DDR4 2400
Expansion Slot
  • PCI-E Slots: 2 PCIe3.0 x16
  • Mezzanine slot:
    • PCIex8(CPU1) with NCSI (for LAN mezzanine card)
    • PCIex8(CPU2) (for LAN mezzanine card)
  • M.2: 1, M key PCIe x4(CPU1) and SATA NGFF SATA3(shared with PCH SATA1)
Drive Bays
  • 8 Bay 3.5" SATA HDD (6Gb/s)
  • 4 Bay 2.5" PCIE SSD
Network Controller
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
IPMI
  • 1 x Realtek RTL8211E for dedicated management GLAN
  • ASPEED AST2400
Cooling Features 4 Middle cooling PWM 40x40x28mm Fan(s)
Onboard I/O
  • USB: 2 Type-A (USB3.2 Gen1) at Rear and 1 x USB 2.0 ports at Front
  • SATA: 10 SATA (6Gbps) port(s) • Video Output: 2 VGA port(s) (Fromnt+Rear)
  • Serial Port: 1 COM Port
Operating Environment
  • Operation temperature: 10°C ~ 35°C
  • Non-operating Temperature: -40°C ~ 70°C
  • Non-operating Relative Humidity: 20% ~ 90% ( Non condensing)
Power Supply 750W Redundant Gold/Platinum Level Power Supply (90-92% Efficiency)
Dimension / Form Factor 2U Rackmount
