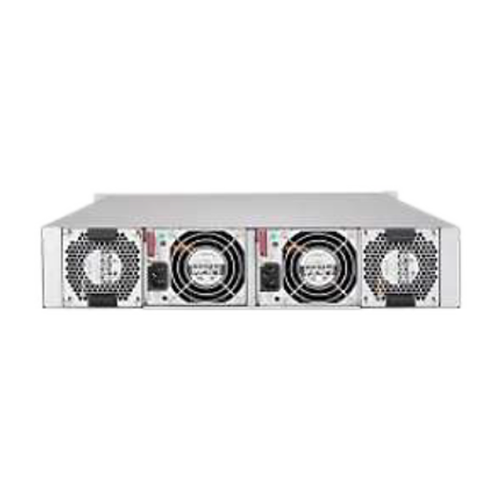

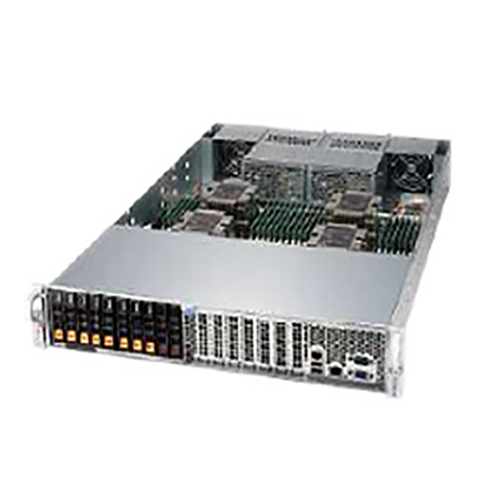

Invento i6241 Series

i6241

Invento i6241 Series

Salient Features
  • Quad Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 12TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 48 DIMM slots
  • 5 PCI-E 3.0 x8 slots, 2 PCI-E 3.0 x16 slots
  • 2 Hot-swap 2.5" SATA3 drive bays, 8 Hot-swap 2.5" U.2 NVMe SSD bays
  • 1 GbE LAN ports via Intel i210, 1 dedicated IPMI LAN port
  • 4 heavy duty fans
  • 2200W Redundant Power Supplies Titanium Level (96% Efficiency)

Specification

Model i6241
Processor Support 4 X 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Core Logic Intel® C621 chipset
Memory
  • 48 x DIMM slots;
  • Up to 12TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 5 PCI-E 3.0 x8 slots &
  • 2 PCI-E 3.0 x16 slots
Drive Bays
  • 2 Hot-swap 2.5" SATA3 drive bays
  • 8 Hot-swap 2.5" U.2 NVMe SSD bays
  • M.2: 2 M.2 M key for NVMe/SATA3 (22110/2280)
Cooling Features 4 heavy duty fans with optimal fan speed control
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 2 SATA3 (6Gbps) ports
  • NVMe: 8 U.2 NVMe
  • LAN: 1 RJ45 GbE LAN port, 1 RJ45 Dedicated IPMI LAN port
  • USB: 2 USB 3.0 ports (front)
  • Video: 1 VGA Connector
  • Serial Port / Header: 1 COM port (rear)
Power Supply 2200W Redundant Power Supplies Titanium Level (96% Efficiency)
Dimension / Form Factor 2U Rackmount
