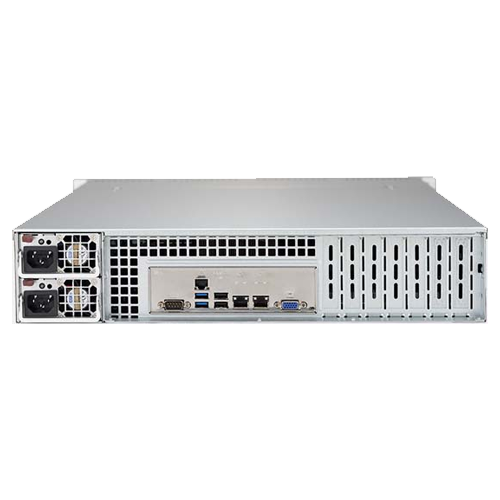

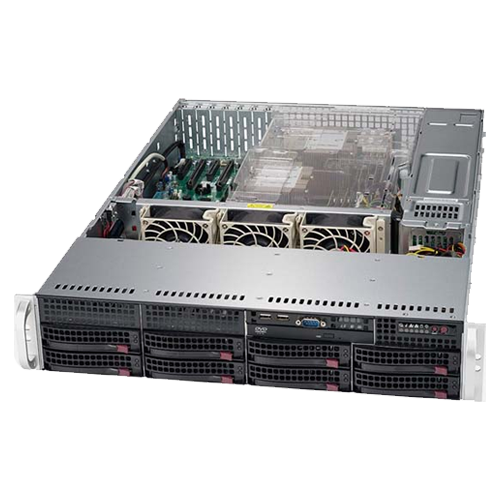

Invento i626 Purley Series

i626

Invento i626 Purley Series

Salient Features
  • Cloud and Virtualization needs
  • Compute Intensive Application
  • Database Processing and Storage
  • High Availability Storage
  • Hosting & Application Delivery
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots. Supports Intel Optane Memory NVDIMM
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
  • 8 Hot-swap 3.5" SATA3 drive bays
  • 2x 1GbE LAN ports with Intel® X722
  • Optional DVD-ROM drive, optional support: 2 fixed 2.5" NVMe/SSD/HDD, 1 M.2 support
  • 3 Heavy duty 80mm fans
  • 1000W Redundant Power Supplies Titanium Level (96% efficiency)

Specification

Model i626
Processor Support 2 X Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 16 x DIMM slots;
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 4 PCI-E 3.0 x16,
  • 2 PCI-E 3.0 x8 slots
RAID Options SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays 8 Hot-swap 3.5" SATA3 drive bays
Networking
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Power Configuration ACPI / APM Power Management
Onboard I/O
  • SATA: 8 SATA3 (6Gbps) ports
  • USB: Rear USB: 2 USB 3.0 + 2 USB 2.0, Front USB: 2 USB 2.0 USB Header: 1 Type A
  • VGA: 1 VGA port
  • Serial Port / Header: 2 Fast UART 16550 serial, 2 COM Ports (1 rear, 1 header)
  • DOM: 2 DOM (Disk on Module) ports
Power Supply 1000W Redundant Power Supplies Titanium Level 80 PLUS (96% efficiency)
Dimension / Form Factor 2U Rackmount
