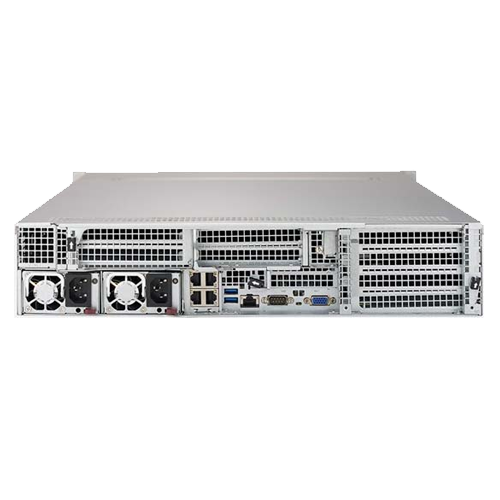

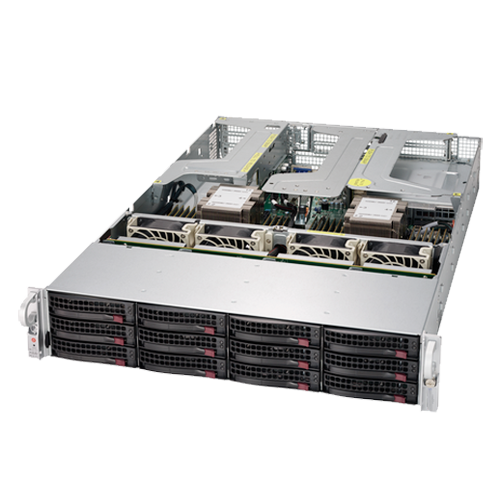

Invento i628 Purley Series

i628

Invento i628 Purley Series

Salient Features
  • Virtualization
  • Hyperconverge Storage
  • Cloud Computing
  • High End Enterprise Server
  • Flexible Networking Options
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 24 DIMM slots
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 4 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
  • 12 Hot-swap 3.5" drive bays: 12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
  • 4 Nos. x 1G/10GBase-T LAN ports
  • 4 Heavy duty 8cm fans
  • 1000W High efficiency (Upto 96%) Redundant PSU; Platinum/Titanium Level

Specification

Model i628
Processor Support
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s; Up to 28 cores / 38.5MB Cache
Core Logic Intel® C621 chipset
Memory
  • 24 x DIMM slots;
  • Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz
  • Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
  • 4 PCI-E 3.0 x8 slots (FH, 10.5" L),
  • 1 PCI-E 3.0 x8 slot (LP)
RAID Options SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays 12 Hot-swap 2.5"/3.5" drive bays:
  • 12 SATA (opt. 8 SAS3 + 4 NVMe/SAS3),
  • Optional 2 hot-swap 2.5" rear drive bays for SSDs;
  • Optional M.2 NVMe and SATA3 ports
Networking
  • 4 RJ45 1G/10GBase-T Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Power configurations ACPI Power Management
Onboard I/O
  • SATA: 12 SATA3 (6Gbps) ports
  • SAS: 8 SAS3 + 4 SAS3/NVMe support optional
  • USB: 3 USB 3.0 ports (2 rear, 1 Type A)
  • Video: 2 VGA ports (1 rear, 1 onboard)
  • Serial Port / Header: 1 Serial header
  • DOM: 2 DOM (Disk on Module) ports
  • TPM: 1 TPM Header
Power Supply 1000W High efficiency (Upto 96%) Redundant PSU; Platinum/Titanium Level
Dimension / Form Factor 2U Rackmount
