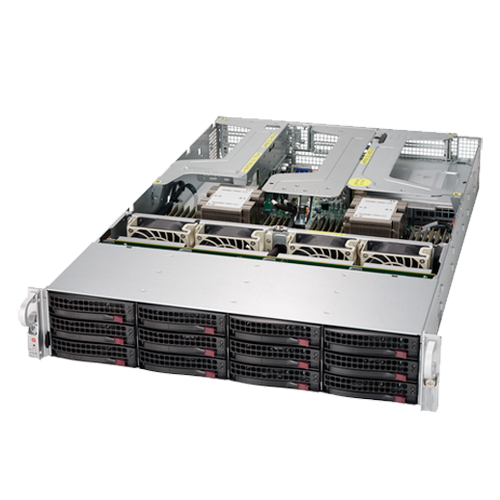

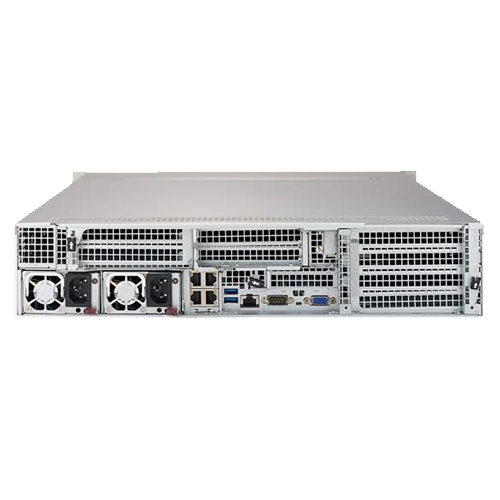

Invento i628e Purley Series

i628e

Invento i628e Purley Series

Salient Features
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
  • 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 4 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)
  • 12 Hot-swap 3.5" drive bays: 12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports
  • 4 Heavy duty 8cm PWM fans
  • 1000W High efficiency (96%) Redundant PSU; Titanium Level

Specification

Model i628e
Processor Support 2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 chipset
Memory
  • 24 x DIMM slots;
  • Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz;
PCIe Expansion Slot
  • 22 PCI-E 3.0 x16 slots (FH, 10.5" L),
  • 4 PCI-E 3.0 x8 slots (FH, 10.5" L),
  • 1 PCI-E 3.0 x8 slot (LP)
RAID Options SATA: SATA3 (6Gbps) with RAID 0, 1, 5, 10
Drive Bays 12 Hot-swap 2.5"/3.5" drive bays:
  • 12 Hot-swap 3.5" drive bays: 12 SAS3 via opt. AOC (4 hybrid ports - opt. 4 NVMe), Optional 2 hot-swap 2.5" rear drive bays for SSDs;
  • Optional M.2 NVMe and SATA3 ports
Networking
  • 4 RJ45 10GBase-T Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SAS: 12 SAS3 ports via expander and AOC
  • USB: 3 USB 3.0 ports (2 rear, 1 Type A)
  • Video: 2 VGA ports (1 rear, 1 onboard)
  • Serial Port / Header: 1 Serial header
  • DOM: 2 DOM (Disk on Module) ports
Power Supply
  • 1000W High efficiency (96% Efficiency) Redundant Power supply;
  • Titanium Level
Dimension / Form Factor 2U Rackmount
