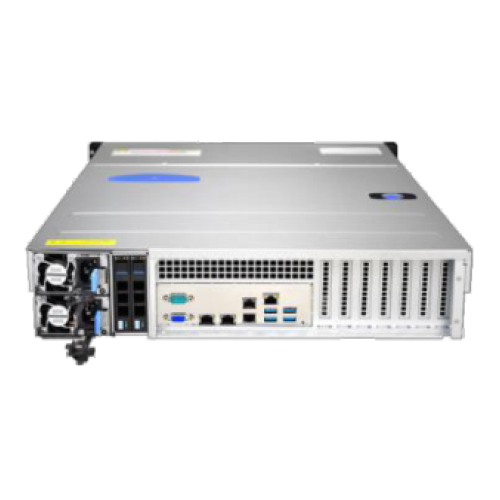

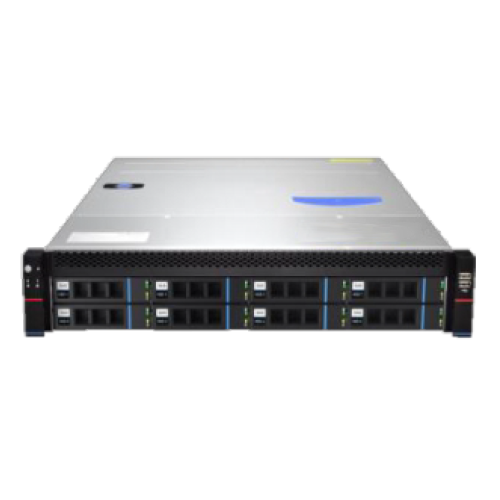

Invento i6303 Series

3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz,, in 8 DIMM slots
4 PCI-E 4.0 x16, 1 PCI-E 4.0 NVMe x8 Internal Port(s)
Dual LAN with Intel® X550 10GBase-T Ethernet Controller
8 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
3 x 80mm heavy duty fan(s)
Internal DVD R/W (Optional)
600W/800W Redundant Power Supply Platinum/Titanium Level (94%-96%)

Model	i6303
Processor Support	2 x 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 185W TDP, 2 UPI up to 11.2 GT/s
Core Logic	Intel® C621A chipset
Memory	8 x DIMM slots; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB ECC RDIMM, DDR4-3200MHz
PCIe Expansion Slot	PCI-E Slots 4 PCI-E 4.0 x16 M.2 M.2 Interface: 1 PCI-E 4.0 x4; 1 PCI-E 4.0 x4 Form Factor: 2280/22110, 2280 Key: M-Key
RAID Options	SATA: Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay Optional 2 x 3.5" fixed drive bay Optional 2 x 2.5" hot-swap SAS3/SATA drive bay
Network Controllers	2 x RJ45 10 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2600 BMC
Cooling Features	3 x 80mm heavy duty fan(s) with PWM fan(s) speed control
Onboard I/O	USB: 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) Video Output: 1 VGA port(s) Serial Port: 1 COM Port(s) (1 header) DOM: 2 SATA DOM (Disk on Module) power connector support TPM: 1 TPM Header
Power Supply	600W/800W Redundant Power Supply Platinum/Titanium Level (94%-96% Efficiency)
Dimension / Form Factor	2U Rackmount
