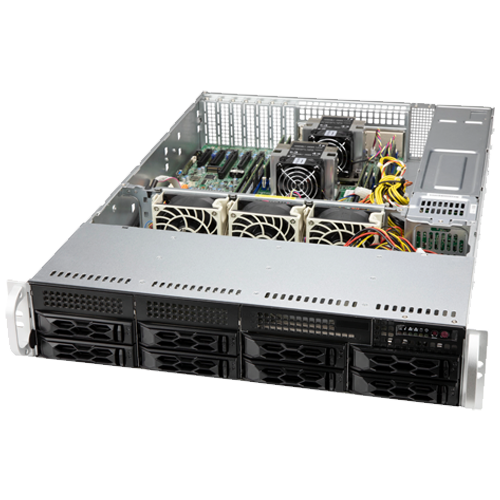

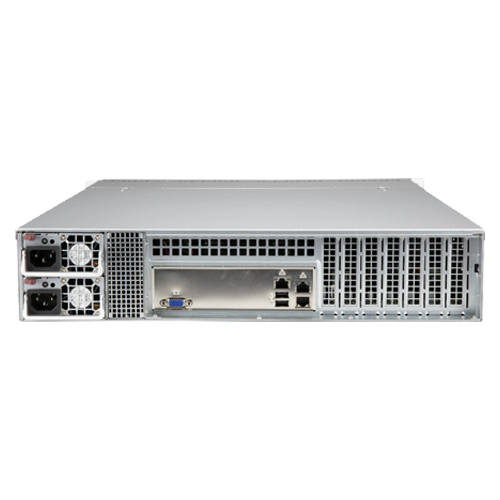

Invento i6308 EPYC Series

Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
Up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
5 PCI-E 4.0 x16, 2 PCI-E 4.0 x8, M.2 Interface: 2 PCI-E 4.0 x4
2 Nos. Gigabit Ethernet LAN Ports
3 x 80mm heavy duty fan(s) with PWM fan(s) speed control
8 SATA3 (6 Gbps) ports
8 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bays
DVD RW (optional)
600W / 650W (1+1) Redundant Power Supply Platinum Level Certified with 92% efficiency

Model	i6308 EPYC
Processor Support	1 X Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor dropin support requires BIOS version 2.0 or newer)
Core Logic	System on Chip
Memory	8 x DIMM slots; Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
Expansion Slot	PCI-Express: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2: Interface: 2 PCI-E 4.0 x4 Form factor: 2280, 22110 Key: M-key
Drive Bays	8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bays Optional 2x 2.5" hot-swap SAS3/SATA drive bays
IPMI	Support for Intelligent Platform Management Interface v. 2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC
Network Controllers	2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port
Onboard Graphics	ASPEED AST2500 BMC
Cooling Features	3 x 80mm heavy duty Hot Swap fan(s) with PWM fan(s) speed control
Onboard I/O	SATA: 8 SATA3 (6 Gbps) ports SATA/NVMe Hybrid: 8 SATA3 or 2 NVMe via single SlimSAS x8 USB: 6 USB 3.0 ports (4 rear + 2 via header) VGA: 1 VGA port Others: 1 COM port (rear), 2 SATA DOM power connectors, 1 TPM 2.0 header
Operating Environment / Compliance	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Power Supply	600W / 650W (1+1) Redundant Power Supply Platinum Level Certified with 92% efficiency
Dimension / Form Factor	2U Rackmount
