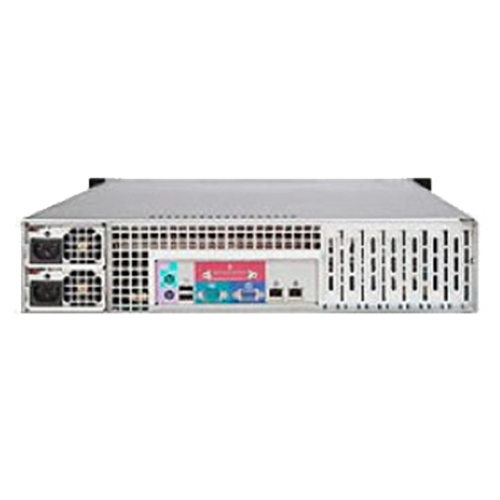

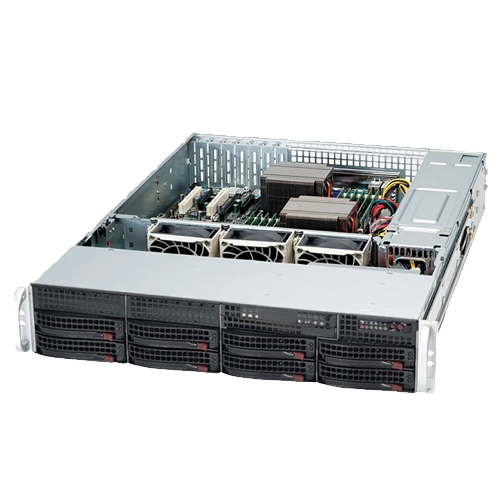

Invento i6309 EPYC Series

i6309 EPYC

Invento i6309 EPYC Series

Salient Features
  • Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs
  • 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots
  • Dual 10GBase-T LAN ports, 1 dedicated IPMI LAN Port
  • 3 x 80mm heavy duty Hot Swap fan(s) with PWM fan(s) speed control
  • 10 SATA3 (6 Gbps) ports
  • 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
  • DVD RW (optional)
  • 800W (1+1) Redundant Power Supply, Titanium level certified with 96% efficiency

Specification

Model i6309 EPYC
Processor Support 2 x AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer), Socket SP3, Up to 64 Cores
Core Logic System on Chip
Memory
  • 16 x DIMM slots;
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
Expansion Slot
  • PCI-Express:
    • 3 PCI-E 4.0 x16 slots
    • 3 PCI-E 4.0 x8 slots
  • M.2:
    • Interface: 1 PCI-E 4.0 x4
    • Form Factor: 2280, 22110
    • Key: M-key
Drive Bays
  • 2 x 3.5" fixed drive bays
  • 8 x 3.5" hot-swap SAS3/SATA drive bays
IPMI
  • Support for Intelligent Platform Management Interface v. 2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN via Broadcom BCM57416 10GBase-T Ethernet Controller
  • 1 RJ45 Dedicated IPMI LAN port
Onboard Graphics ASPEED AST2600 BMC
Cooling Features 3 x 80mm heavy duty Hot Swap fan(s) with PWM fan(s) speed control
Onboard I/O
  • SATA: 10 SATA3 (6 Gbps) ports
  • USB: 2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers)
  • VGA: 1 VGA port
  • Others:
    • 1 COM port (rear)
    • 2 SATA DOM power connectors
    • 4 PCI-E 4.0 NVMe x4 internal ports
  • TPM: TPM 2.0 header
Operating Environment / Compliance
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Power Supply 800W (1+1) Redundant Power Supply, Titanium level certified (96% efficiency)
Dimension / Form Factor 2U Rackmount
