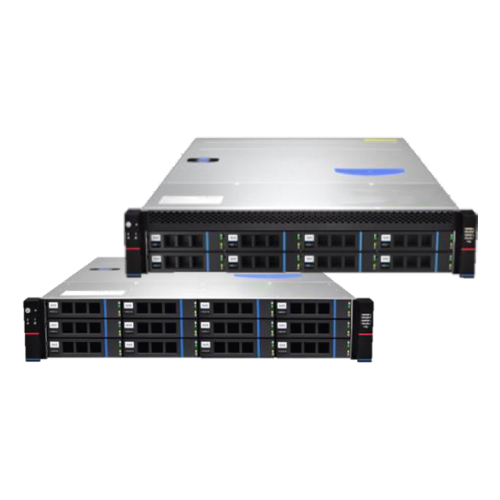

Invento i6309 Series

i6309

Invento i6309 Series

Salient Features
  • 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
  • 2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16, 2 PCI-E 4.0 NVMe x8 Internal Port(s)
  • Dual LAN with Intel® i350 Gigabit Ethernet Controller
  • 8 or 12 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bays
  • Intel® C621A chipset
  • 600W / 650W/ 800W (1+1) Redundant Power Supply (94% Efficiency) 80PLUS Platinum Level

Specification

Model i6309
Processor Support 2 x 3rd Gen Intel® Xeon® Scalable processors LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core Logic Intel® C621A chipset
Memory
  • 18 x DIMM slots;
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
  • P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only
Expansion Slot
  • PCI-E Slots:
    • 4 PCI-E 4.0 x16,
    • 2 PCI-E 4.0 x8
  • M.2:
    • M.2 Interface: 1 PCI-E 4.0 x4
    • Form Factor: 2280/22110
    • Key: M-Key
RAID Options SATA: Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bays OR 12 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bays
  • Rear: 2 x 2.5'' SATA3.0 SSD(optional)
Network Controller
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 Dedicated IPMI Management Port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2600 BMC
Cooling Features
  • 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control
  • 1 x 80mm FAN (optional)
Onboard I/O
  • SATA: 14 SATA3 (6Gbps) port(s)
  • USB: 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A), 2 USB 2.0 port(s) (2 via header)
  • Video Output: 2 VGA (1 rear bezel, 1 front panel) port(s)
  • Serial Port: 2 COM Port(s) (1 header; 1 rear)
  • TPM: 1 TPM Header
Operating Temperature
  • Operating Temperature Range: 10°C - 35°C (50°F - 95°F)
  • Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
  • Operating Relative Humidity Range: 8% - 90% (non-condensing)
  • Non Operating Relative Humidity Range: 5% - 95% (non-condensing)
Regulatory Power Supply Safety / EMC:
  • BSMI
  • CCC
  • CE/EMC
  • FCC
Power Supply 600W / 650W/ 800W (1+1) Redundant Power Supply (94% Efficiency) 80PLUS Platinum Level
Dimension / Form Factor 2U Rackmount
