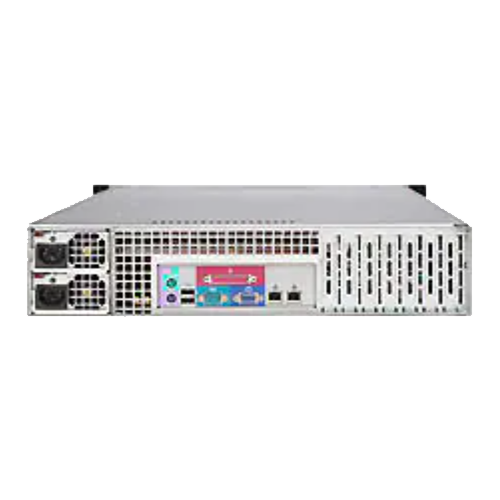

Invento i631 Purley Series

i631

Invento i631 Purley Series

Salient Features
  • Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
  • Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 M.2 Interface: 2 PCI-E 3.0 x4 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: MKey (RAID 0,1 support)
  • Dual LAN with 1GbE with Marvell® 88E1512
  • 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 2 x 3.5" fixed drive bay
  • 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
  • 740W Redundant Platinum Power Supply

Specification

Model i631
Processor Support 2 X Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Core Logic Intel® C621 chipset
Memory
  • 16 x DIMM slots;
  • Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM
PCIe Expansion Slot
  • 3 PCI-E 3.0 x 16,
  • 4 PCI-E 3.0 x8 M.2 Interface: 2 PCI-E 3.0 x4 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: M-Key (RAID 0,1 support)
RAID Options SATA: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  • 2 x 3.5" fixed drive bay
Network Controllers Dual LAN with 1GbE with Marvell® 88E1512
IPMI ASPEED AST2500
Cooling Feature 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) ports
  • LAN: 2 1GbE LAN ports
  • USB: 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 1 COM Port (1 rear)
  • TPM: 1 TPM Header
Power Supply 740W Redundant Platinum Power Supply 80PLUS (94% efficiency)
Dimension / Form Factor 2U Rackmount
