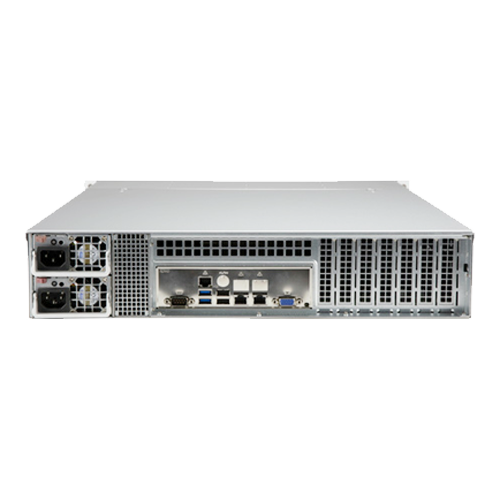

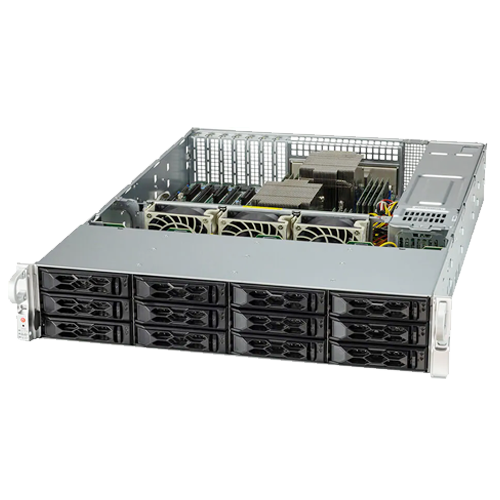

Invento i6312 EPYC Series

i6312 EPYC

Invento i6312 EPYC Series

Salient Features
  • Key Applications:
    • Virtualization
    • Enterprise Server
    • Application and data serving
    • Data Center Optimized
    • Model analysis
    • Compute Intensive Applications
  • Dual AMD EPYC™ 7003/7002 Series Processors Supports Up to 240W CPU TDP
  • Supports 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, 16 DIMM Slots
  • Up to 6 nos. PCIe 4.0 Expansion Slot
  • Dual Gigabit LAN ports
  • 12 hot-swap 3.5" (Tool-less) or 2.5" (screw) drive bays
  • 3 heavy duty fans with optimal fan speed control
  • ASPEED AST2600 onboard Graphics
  • 920W (1+1) Redundant Platinum level power supplies 94% efficeincy

Specification

Model i6312 EPYC
Processor Support 2 x AMD EPYC™ 7002/7003 Series Processors Support CPU TDP 240W, Up to 64C/128T; Up to 256MB Cache
Core Logic System on Chip
Memory
  • 16 x DIMM slots;
  • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM
Expansion Slot
  • PCI-Express:
    • 3 PCI-E 4.0 x16 slots,
    • 3 PCI-E 4.0 x8 slots
  • M.2:
    • M.2 Interface: 1 PCI-E 4.0 x4
    • M.2 Form Factor: 2280, 22110
    • M.2 Key: M-key
Drive Bays
  • Hot Swap:
    • 12x 3.5" hot-swap SATA/NVME drive bays
      (3.5" drive installation is tool-less, 2.5" drives will require screws. Default drive configuration is 8 SATA + 4 NVMe, other configurations require additional optional parts)
  • M.2:
    • 1 M.2 NVMe
    • M-key, 2280, 22110
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Network Controllers
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
Cooling Features
  • Fans: 3 Middle 80mm Fan(s)
  • Air Shroud: 1 Clear Plastic Air Shroud(s)
Onboard I/O
  • SATA: 10 SATA3 (6 Gbps) ports
  • USB: 2 USB 3.0 port(s) + 2 USB 2.0 port(s)
  • Video: 1 VGA Ports (Rear)
  • Serial Port: 1 COM Port
  • TPM: TPM 2.0 header
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
Power Supply 920W (1+1) Redundant Platinum level Power Supplies 94% efficeincy (80PLUS)
Dimension / Form Factor 2U Rackmount
