Invento i6313 EPYC

i6313 EPYC

Invento i6313 EPYC

Salient Features
  • Key Applications:
    • Virtualization
    • HPC
    • Cloud Computing
    • High End Enterprise Server
    • Software - Defined Storage
    • AI Inference and Machine Learning
    • 5G/Telco
  • AMD EPYC™ 7003X/7003/7002 series Dual Socket processors
  • 32 x DDR4 DIMMs; 3200MT/s, RDIMM/3DS RDIMM
  • Front: supports up to 8 x 3.5 "/12 x 3.5" hard drives
  • Supports 2 x M.2 (2280, PCIe 4.0 x2)
  • Supports up to 10 x standard PCIe expansion slots

Specification

Model i6313 EPYC
Processor Support Supports 2 x AMD EPYC™ 7003X/7003/7002 processor, single CPU supports up to 64 physical cores, maximum power 280W, 4 xGMI links interconnection
GPU
  • Supports up to 3 x FHFL-DW GPUs or
  • Supports up to 8 x HHHL-SW GPUs
System Memory 32 x DDR4 DIMMs, up to 3200MT/s, RDIMM/3DS RDIMM; Max. up to 8TB
Storage controller
  • Integrated 6Gb/s SATA controller;
  • Optional supports for 12Gb/s SAS HBA and 12Gb/s SAS RAID card
Drive Bays

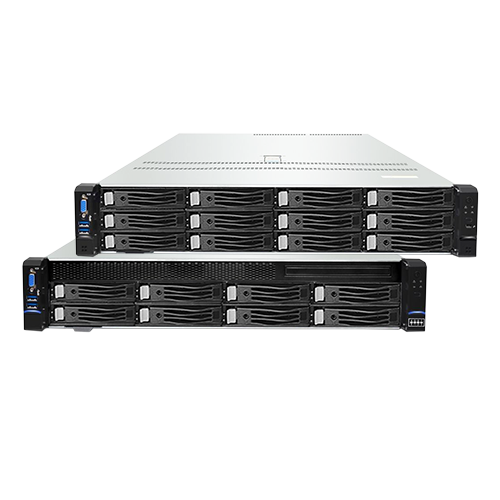

  • Front: supports up to 8 x 3.5"/ 12 x 3.5" SAS/ SATA Drives (Optional 6 NVMe)
  • (Optional) 6 x 2.5" hard drives
  • Built in: supports 2 x M.2 (2280, PCIe 4.0 x2)
Expansion Slots Supports up to 10 x standard PCIe expansion slots
On-Board Devices System on chip
Input / Output
  • 1 x 1Gb RJ45 dedicated management network port
  • Optional supports for 1 x OCP 3.0 network card, NCSI, optional 4 × 1GbE/2 × 10Gb SFP+/4 × 10Gb SFP+/2 × 25Gb SFP28 or other standard compliant cards
  • Front: 1 x VGA, 2 x USB 3.0

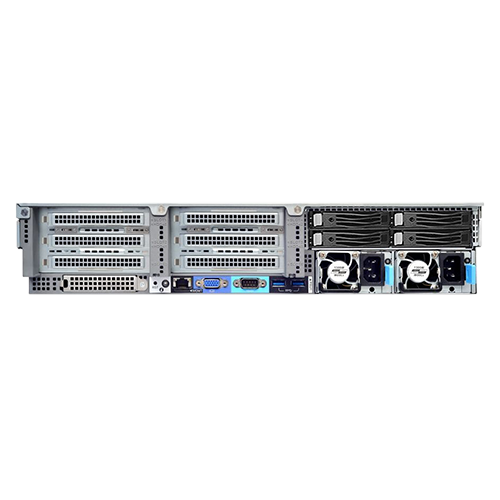

  • Rear: 1 x VGA, 2 x USB 3.0, 1 x RJ45 management network port, 1 x COM
Power supply
  • It can be configured with 2 x power modules, supporting 1+1 redundancy and hot plugging
  • Optional 800W/1300W/1600W/2000W/2400W high-efficiency Platinum/Titanium power supply Supports 220V AC/240V DC
Security
  • Optional TPM security module, chassis open cover intrusion detection, locked chassis cover (tool free), BMC dual- flash redundancy
Management Integrated BMC management chip AST2600 for management functions, supporting IPMI2.0 Redfish, SOL, KVM, Virtual media and other functions
PC Health Monitoring
  • Four hot swappable fans, supporting N+1 redundancy, intelligent speed regulation, and abnormal alarm
  • Working temperature: 5 ºC to 35 ºC
  • Storage temperature: -40 ºC to 65 ºC
Operating Environment
  • Working relative humidity: 8% to 90% (non-condensing)
  • Storage relative humidity: 5% to 95% (non-condensing)
chassis 2U
Form Factor
  • 2U Rackmount
  • Enclosure: 87mm (H) x 448mm (W) x 763mm (D); (including 783mm hanging ears)
