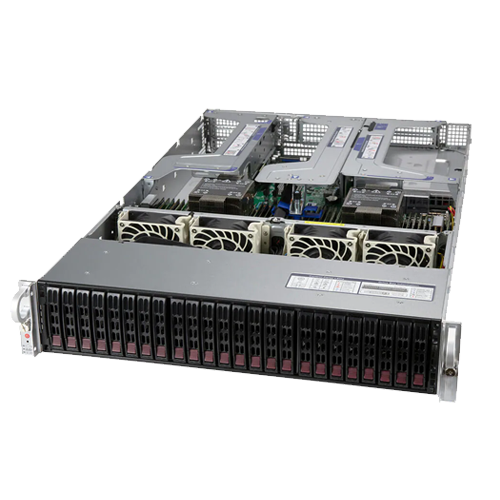

Invento i6322 Series

i6322

Invento i6322 Series

Salient Features
  • Key Applications:
    • Virtualization
    • HPC
    • Cloud Computing
    • High End Enterprise Server
    • Software Defined Storage
    • Application Tier Service Provider
    • 5G/Telco
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Supports upto 8TB 3200MHz memory frequency support, 32 DIMM Slots
  • Up to 7 nos. PCIe 4.0 Expansion Slot
  • Flexible networking options
  • 22x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays + 2x2.5" hot-swap SATA/SAS drive bays
  • 4 heavy duty fans with optimal fan speed control
  • ASPEED AST2600 onboard Graphics
  • 1600W (1+1) Redundant Titanium level power supplies 96% efficeincy

Specification

Model i6322
Processor Support 2 x Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W
Core Logic Intel® C621A Chipset
Memory
  • 32 x DIMM slots;
  • Supports upto 8TB 3200MHz memory frequency support
  • Intel® Optane™ persistent memory 200 series
Expansion Slot
  • 1 PCI-E 4.0 x16 (FH, 10.5"L),
  • 1 PCI-E 4.0 x16 (LP),
  • 5 PCI-E 4.0 x8 (FH, 10.5"L)
  • (Using Optional RSC card enables PCI-E x16 in slots 5, 7. Slots 6,8 will be disabled)
RAID Options
  • SATA: SATA3 (6Gbps) via Intel® PCH 621A; RAID 0/1/5/10 support
  • NVMe: NVMe (16GT/s); RAID 0/1/5/10 support
Drive Bays 22 x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays + 2 x 2.5" hot-swap SATA/SAS drive bays
Network Controllers
  • 2 x 10GbE BaseT with Intel® X710-AT2 (optional)
    OR
    2 x 10GbE BaseT and 2 x 10GbE SFP+ with Intel® X710-TM4 (optional)
  • 1 RJ45 Dedicated BMC LAN port
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Cooling Feature Fans: 4x 8cm heavy duty fans with optimal fan speed control • Air Shroud: 2 Air Shroud(s)
Onboard I/O
  • USB: 2 USB 3.0 port(s) (2 rear)
  • Video: 1 VGA Ports (Rear)
  • Serial Port:1 COM Port
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
Management Features
  • Software:
    • IPMI 2.0
    • KVM with dedicated LAN
    • Diagnostics Offline
    • SuperDoctor® 5
    • Update Manager, Power Manager
    • System Server Manager
    • Redfish API
  • Power Configurations:
    • ACPI Power Management
    • Power-on mode for AC power recovery
PC Health Monitoring
  • CPU:
    • Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory
  • FAN:
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
  • Temperature:
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
Power Supply 1600W (1+1) Redundant Titanium level Power Supplies 96% efficeincy (80PLUS)
Dimension / Form Factor 2U Rackmount
