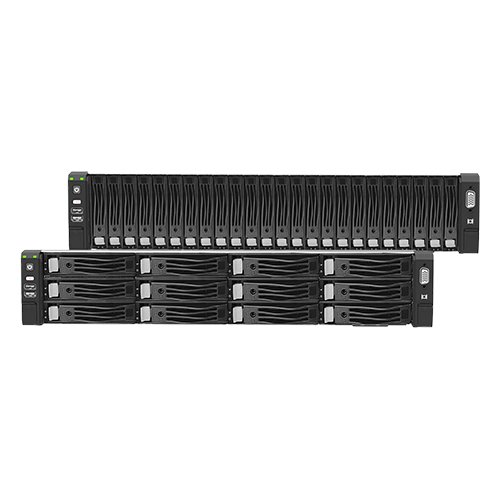

Invento i6327-FS Series

i6327-FS

Invento i6327-FS Series

Salient Features
  • Key Applications:
    • Virtualization
    • HPC
    • Cloud Computing
    • High End Enterprise Server
    • Software Defined Storage
    • Application Tier Service Provider
    • 5G/Telco
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Up to 8TB DRAM, in 32 DIMM slots
  • 8 PCI-E 4.0 slots
  • 4 USB 3.0 port(s)
  • 2 x 1G Networking ports
  • ASPEED AST2600 BMC
  • ASPEED AST2600 BMC
  • 12 x 3.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 800W/1200W/1300W/1600W/2000W Redundant Platinum/Titanium level power supplies(92-96% Efficiency)

Specification

Model i6327-FS
Processor Support 2 x Dual Socket P+ (LGA-4189)3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W
Core Logic Intel® C621A Chipset
Memory
  • 32 x DIMM slots;
  • Up to 8TB DRAM;
  • 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM
Expansion Slot
  • Max. 8 x PCIe4.0 Slots
  • 1 x OCP 3.0 slot
RAID Options SATA: SATA3 (6Gbps) via Intel® PCH 621A; RAID 0/1/5/10 support
Drive Bays
  • 12 x 3.5" hot-swap NVMe/SATA/SAS drive bays
  • Optional 4 x 2.5" hot-swap SAS/SATA drives (at rear)
Network Controller
  • 2 x 1G Ethernet Ports
  • 1 RJ45 Dedicated BMC LAN port
  • Flexible networking option through OCP 3.0 slot
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics ASPEED AST2600 BMC
Cooling Feature
  • Fans: 4x 8cm heavy duty Hot-swap fans with optimal fan speed control
  • Air Shroud
Onboard I/O
  • USB: USB 3.0 port(s) (rear), USB 3.0 port(s) (front)
  • Video: 1 VGA port(front), 1 VGA port(rear)
  • 1 TPM Header
Power Supply 800W/1200W/1300W/1600W/2000W Redundant Platinum/Titanium level power supplies(92-96% Efficiency)
Dimension / Form Factor 2U Rackmount
