Invento i6327 Series

i6327

Invento i6327 Series

Salient Features
  • 3rd Gen. Intel® Xeon® Scalable Dual Socket P+ (LGA-4189) processors
  • Intel® C621A Chipset
  • 32 DIMM slots; up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM; RDIMM

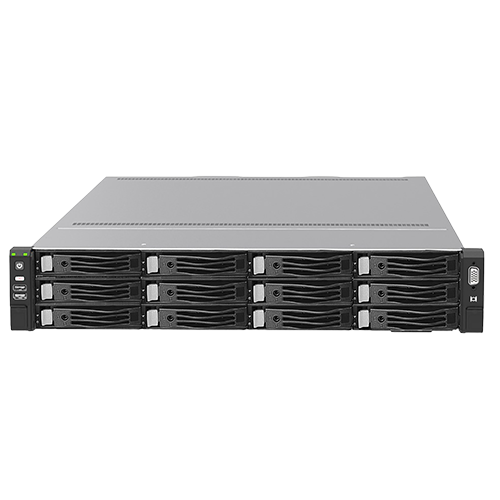

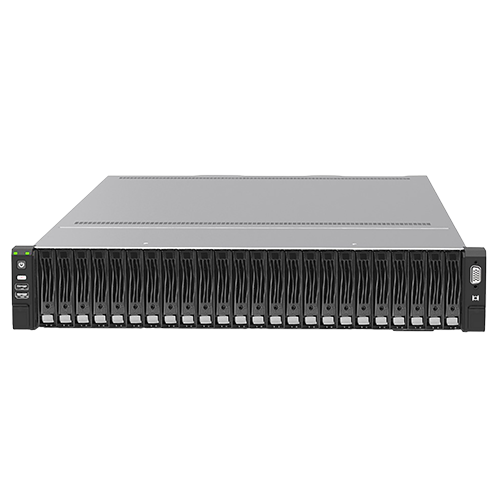

  • 12 x 3.5"/2.5" or 24 x 2.5" Hot-Swap NVMe/SATA/SAS drive bays
  • Up to 8 PCIe slots, 2 x DW GPU support
  • Intel® AVX-512, 3 x UPI, up to 11.2GT/s
  • OCP 3.0
  • Compatible with TPM, TCM security control modules

Specification

Model i6327
Processor Support
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Up to 40C/80T; Up to 60MB Cache per CPU
On-Board Devices Intel® C621A Chipset
System Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Expansion Slot
  • General purpose
    • Max. 8x PCIe 4.0 Slots + 1 x OCP 3.0
    • Riser 1: FHHLx16 + FHHLx8 + FHHLx8
    • Riser 2: FHFLx16 + FHFLx8 + FHHLx8
    • Riser 3: FHHLx8 + FHHLx8
    • SFF OCP 3.0 (x16 PCIe)
  • 2 DW GPU
    • Max. 6x PCIe 4.0 Slots + 1x OCP 3.0
    • Riser 1: FHHLx16 + FHHLx8
    • Riser 2: FHFLx16 + FHFLx8
    • Riser 3: FHHLx8 + FHHLx8
    • SFF OCP 3.0 (x16 PCIe)
Drive Bays
  • 12 x 3.5"/2.5" (Optional upgradable to 24 x 2.5") hot-swap NVMe/SATA/SAS drive bays;
  • Optional 4x2.5" drives (rear)
Management KVM with dedicated LAN; IPMI 2.0; Redfish API
System Cooling 4 x 8cm heavy duty fan(s)
Onboard I/O
  • LAN: 2 x 1G Ethernet Ports, 1 RJ45 Dedicated BMC LAN port
  • USB: 2 USB 3.0 port(s) (2 rear), 2 USB 3.0 port(s) (2 front)
  • Video: 1 VGA port (rear), 1 VGA port (front)
Button & LEDs
  • 1 x PWR BTN with LED
  • 1 x Front UID BTN with LED + 1 x Rear UID LED
System BIOS BIOS Type: AMI 256MB SPI Flash
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltages, Memory
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated(PWM) fan connectors
  • Temperature
    • Monitoring for CPU and Chassis environment
    • Thermal Control for fan connectors
Operating Environment
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Power Supply
  • 1+1 Redundant CRPS (Platinum/Titanium)
  • 800W/ 1300W/ 1600W/ 2000W
Dimension / Form Factor
  • 2U Rackmount
  • Enclosure: 87mm (H) x 436mm (W) x 815mm (D)
Chassis 2U Chassis
