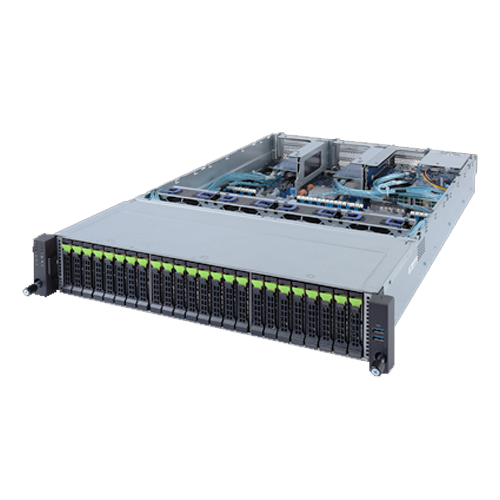

Invento i6328 Series

i6328

Invento i6328 Series

Salient Features
  • 3rd Gen Intel® Xeon® Scalable Processors 10nm technology, CPU TDP up to 270W 2 x LGA 4189 sockets (Socket P+)
  • Supports 8-Channe RDIMM/LRDIMM modules up to 128GB supported 3DS RDIMM/LRDIMM modules up to 256GB supported 1.2V modules: 3200/2933/2666 MHz, 32 DIMM Slots
  • Supports Intel® Optane™ Persistent Memory 200 series
  • Dual ROM Architecture supported
  • 2 x PCIe x16 slots (Gen4 x16), FHHL
  • 2 x 1Gb/s LAN ports (Intel® I350-AM2), 1 x Dedicated management port
  • 24 x 2.5" Gen4 NVMe hot-swappable HDD/SSD bays
  • Intel® C621A chipset
  • 1600W (240V) 80 PLUS Platinum redundant power supply
  • Supports GRAID SupremeRAID SR-1000 NVMe RAID Card

Specification

Model i6328
Processor Support
  • 2 x 3rd Gen Intel® Xeon® Scalable Processors
  • Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor
  • 10nm technology, CPU TDP up to 270W 2 x LGA 4189 sockets (Socket P+)
Core Logic Intel® C621A Express chipset
Memory
  • 8-Channel DDR4 memory, 32 x DIMM slots
  • RDIMM/LRDIMM modules up to 128GB supported
  • 3DS RDIMM/LRDIMM modules up to 256GB supported
  • 1.2V modules: 3200/2933/2666 MHz
Expansion Slot 2 x PCIe x16 slots (Gen4 x16), FHHL
RAID Options Supports GRAID SupremeRAID SR-1000 NVMe RAID Card
Drive Bays
  • 24 x 2.5" Gen4 NVMe hot-swappable HDD/SSD bays
  • 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays in rear side
Network Controller
  • 2 x 1GbE LAN ports (1 x Intel® I350-AM2)
  • 1 x 10/100/1000 management LAN
IPMI
  • Aspeed® AST2600 management controller
  • Management Console (AMI MegaRAC SP-X)
Graphics
  • ASPEED AST2600 BMC
  • 2D Video Graphic Adapter with PCIe bus interface
  • 1920x1200@60Hz 32bpp, DDR4 SDRAM
Cooling Feature 4 x 80x80x38mm (16'300rpm)
Onboard I/O
  • USB Ports: 2 x USB 3.0 (Front), 2 x USB 3.0 (rear)
  • VGA port: 1 x VGA
  • LAN connectivity: 2 x 1GbE RJ45 Ports, 1 x IPMI Management Port
  • TPM: 1 x TPM header
Operating Properties
  • Operating temperature: 10°C to 35°C
  • Operating humidity: 8-80% (non-condensing)
  • Non-operating temperature: -40°C to 60°C
  • Non-operating humidity: 20%-95% (non-condensing)
Backplane I/O
  • Front side_FSGCBP20O7: 24 x NVMe ports
  • Rear side_FSGCBP2022: 2 x SATA/SAS ports
Power Supply 1600W (240V) (1+1) 80 PLUS Platinum redundant power supply
Dimension / Form Factor 2U Rackmount
