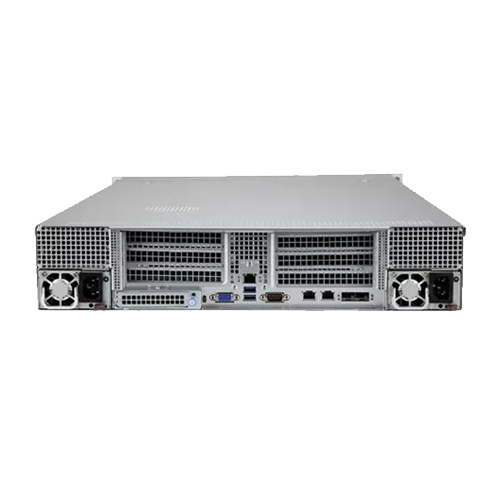

Invento i6342 Series

i6342

Invento i6342 Series

Salient Features
  • Key Applications: Artificial Intelligence (AI), Business Intelligence, Scientific Virtualization, ERP, CRM, HCI, In-Memory Database, SAP HANA
  • Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
  • Supports upto 18TB 3DS ECC DDR4-3200MHz memory frequency support, 48 DIMM Slots
  • Up to 6 nos. PCIe 3.0 Expansion Slot
  • Flexible networking options
  • 24 x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  • 4 heavy duty fans with optimal fan speed control
  • ASPEED AST2500 onboard Graphics
  • 2000W (1+1) Redundant Titanium level power supplies 93% efficeincy

Specification

Model i6342
Processor Support 4 x 3rd Gen Intel® Xeon® Scalable processors (LGA-4189)6 UPI up to 10.4GT/s, Support CPU TDP 120-250W
Core Logic Intel® C621A Chipset
Memory
  • 48 x DIMM slots;
  • Up to 12TB: DRAM
  • Up to 18TB: PMem
  • Memory Type: Upto 3200MHz ECC DDR4 LRDIMM/RDIMM
  • Intel® Optane™ persistent memory 200 series
Expansion Slot
  • Slot 1: PCI-E 3.0 x16 FHHL
  • Slot 2: PCI-E 3.0 x8 FHFL
  • Slot 3: PCI-E 3.0 x16 FHFL
  • Slot 4: PCI-E 3.0 x16 FHHL
  • Slot 5: PCI-E 3.0 x16 FHFL
  • Slot 6: PCI-E 3.0 x8 FHFL
  • Slot 7: PCI-E 3.0 x8 LP (Optional)
  • Slot 8: PCI-E 3.0 x8 LP (Optional)
  • Slot 9: PCI-E 3.0 x8 LP (Optional)
  • Slot 10: PCI-E 3.0 x8 LP (Optional)
RAID Options SATA: Intel® C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays
  • Hot-swap: 24 x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24 x 2.5" NVMe hybrid)
  • M.2: 2 M.2 NVMe OR 2 M.2 SATA3
Network Controller
  • 2 x 10GbE BaseT + 2x 10GbE SFP+ with Intel® X710-TM4
  • (Optional) AIOM 100G QSFP 28
Cooling Features
  • Fans: 4x 8cm heavy duty fans with optimal fan speed control
  • Air Shroud: 1 Air Shroud(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
Onboard I/O
  • USB: 2 USB 3.2 Gen1 port(s) (2 rear)
  • Video: 1 VGA Port (Rear
  • Serial Port:1 COM Port
  • TPM: 1 TPM Header
Power Supply 2000W (1+1) Redundant Titanium level Power Supplies 93% efficeincy (80PLUS)
Dimension / Form Factor 2U Rackmount
