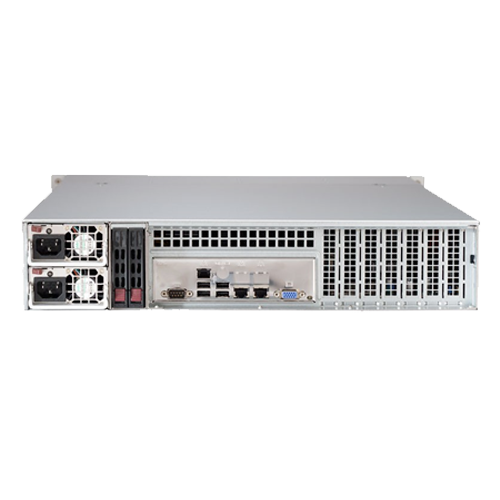

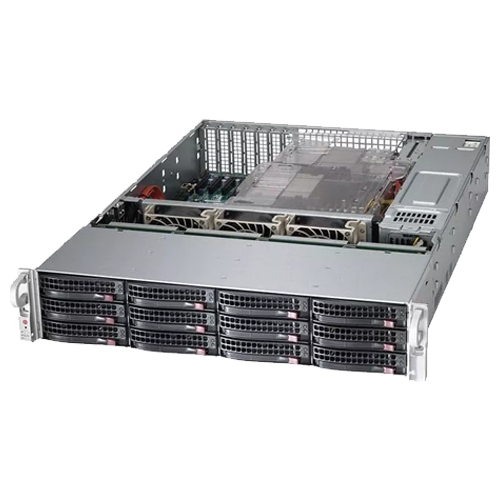

Invento i635e Purley Series

Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 M.2 Interface: 2 PCI-E 3.0 x4 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: MKey (RAID 0,1 support)
Dual LAN with 1GbE with Marvell® 88E1512
12 x 3.5" hot-swap SAS/SATA drive bay with SES3, optional 2 x 2.5" hot-swap drive bay
3 x 8cm high-performance PWM fan(s)
920W Redundant Platinum Super Quiet power supply

Model	i635e
Processor Support	2 X Intel® Xeon® Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
Core Logic	Intel® C621 Chipset
Memory	16 x DIMM slots; Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM
PCIe Expansion Slot	3 PCI-E 3.0 x16 4 PCI-E 3.0 x8 M.2 Interface: 2 PCI-E 3.0 x4 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: M-Key (RAID 0,1 support)
RAID Options	SATA: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays	12 x 3.5" hot-swap SAS/SATA drive bay with SES3 Optional 2 x 2.5" hot-swap drive bay
Cooling Feature	Fans: 3 x 8cm high-performance PWM fan(s)
Networking	Dual LAN with 1GbE with Marvell® 88E1512
Graphics	ASPEED AST2500
Onboard I/O	SATA: 10 SATA3 (6Gbps) ports USB: 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A) Video Output: 1 VGA port Serial Port / Header: 1 COM Port (1 rear) TPM: 1 TPM Header
Power Supply	920W Redundant Platinum Super Quiet power supply 80PLUS (94% Efficiency)
Dimension / Form Factor	2U Rackmount
