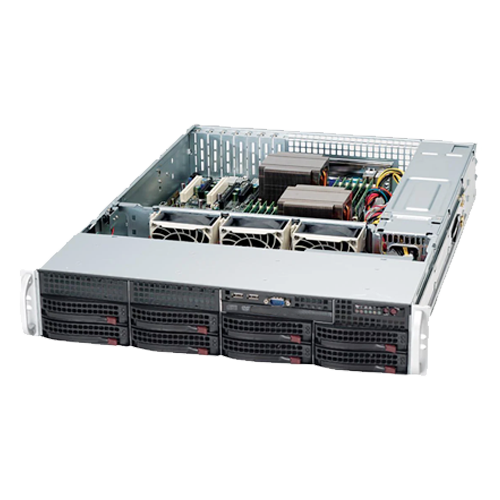

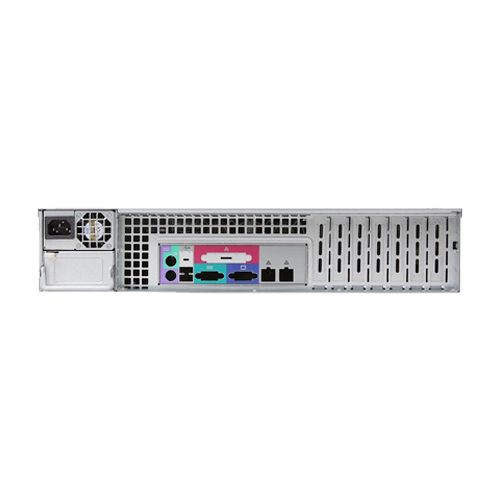

Invento i639 Purley Series

i639

Invento i639 Purley Series

Salient Features
  • Intel® Xeon® Scalable Processors, Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s, CPU1: Skylake-F CPU supported
  • Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, M.2 Interface: PCI-E 3.0 x4, M.2 Form Factor: 2260, 2280, 22110, 2 PCI-E 3.0 NVM Express x4 Internal Port(s)
  • 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 2 x 3.5" fixed drive bay
  • Dual LAN with GbE from C621
  • 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
  • 560W/600W Multi-output power supply Gold level

Specification

Model i639
Processor Support 2 X Intel® Xeon® Scalable Processors, Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s, CPU1: Skylake-F CPU supported
Core Logic Intel® C621 Chipset
Memory
  • 16 x DIMM slots;
  • Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM
PCIe Expansion Slot
  • 4 PCI-E 3.0 x16,
  • 2 PCI-E 3.0 x8,
  • M.2 Interface: PCI-E 3.0 x4,
  • M.2 Form Factor: 2260, 2280, 22110, 2 PCI-E 3.0 NVM Express x4 Internal Port(s)
RAID Options Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  • 2 x 3.5" fixed drive bay
Networking 2 RJ45 Gigabit Ethernet LAN ports
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 14 SATA3 (6Gbps) port
  • USB: 4 USB 2.0 ports (2 rear + 2 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 2 COM Ports (1 rear, 1 header)
  • TPM: 1 TPM Header
Power Supply 560W/600W Multi-output power supply Gold level (80 PLUS GOLD) 92% Efficiency
Dimension / Form Factor 2U Rackmount
