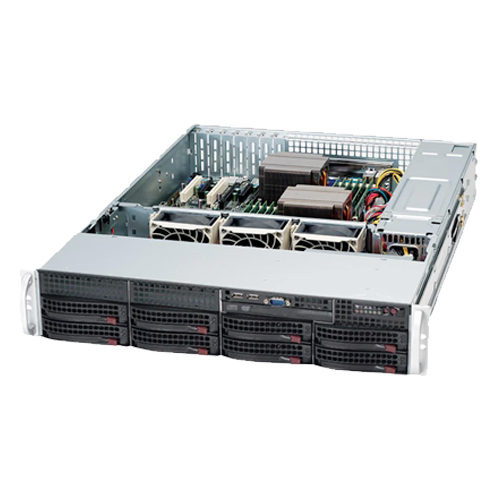

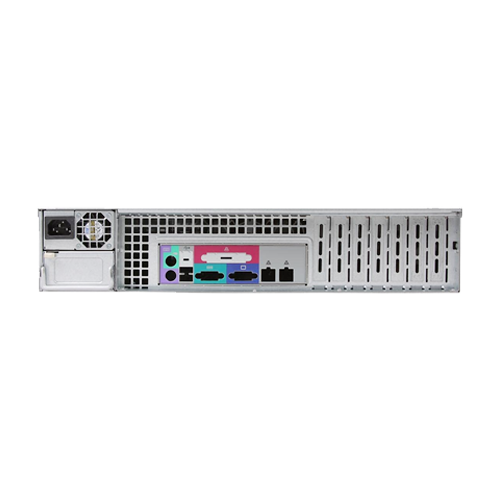

Invento i639e Purley Series

i639e

Invento i639e Purley Series

Salient Features
  • 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
  • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot)
  • 8 x 3.5" hot-swap SAS/SATA drive bay, 2 x 3.5" fixed drive bay
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
  • 560W/600W Multi-output power supply Gold level

Specification

Model i639e
Processor Support 2 X 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Core Logic Intel® C621 Chipset
Memory
  • 8 x DIMM slots;
  • Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz
PCIe Expansion Slot
  • PCI-E:
    • 2 PCI-E 3.0 x16,
    • 3 PCI-E 3.0 x8,
    • 1 PCI-E 3.0 x4 (in x8 slot)
  • M.2:
    • M.2 Interface: 1 SATA/PCI-E 3.0 x4
    • Form Factor: 2260, 2280
    • Key: M-Key
RAID Options SATA: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" hot-swap SAS/SATA drive bays
  • 2 x 3.5" fixed drive bay
Network Controller Dual LAN with Lewisburg Marvell 88E1512 PHY
Graphics ASPEED AST2500 BMC
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) port
  • LAN: 2 RJ45 Gigabit Ethernet LAN ports
  • USB: 4 USB 2.0 ports (2 rear + 2 headers), 3 USB 3.0 ports (2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 1 COM Port (1 header)
  • TPM: 1 TPM Header
Power Supply 560W/600W Multi-output power supply Gold level (80 PLUS GOLD) 92% Efficiency
Dimension / Form Factor 2U Rackmount
