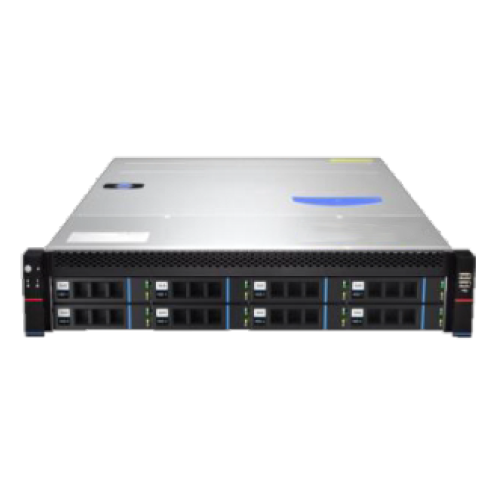

Invento i6401 Series

i6401

Salient Features

5^th/4^th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Up to 2TB 3DS ECC RDIMM, DDR5-5600/4800MT/s(1DPC) in 8 DIMM slots.
3 PCIe 5.0 x8, 2 PCIe 5.0 x16
8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
Dual 1G Ethernet Ports, Optional Dual Port 10G ethernet ports using AOC
Upto 4 No. Hot Swap Redundant Cooling fan(s)
600W / 650W/ 800W/1200W/1600W/2400W Redundant Power Supply (92%-96% Efficiency) 80PLUS Platinum/Titanium Level

Specification

Model	i6401
Processor Support	1 X Intel® Xeon® Scalable 5th /4th Gen. processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP, Upto 60 Cores Per Socket
Core Logic	Intel® C741
Memory	8 x DIMM slots; Up to 2TB 3DS ECC RDIMM, DDR5-5600/4800MHz 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
PCIe Expansion Slot	PCI-E Slots: 2 PCIe 5.0 x16, 3 PCIe 5.0 x8, 2 PCIe 5.0 x8 PCIe5.0 MCIO connector M.2: M.2 Interface: 2 PCIe 5.0 x4 Form Factor: 2280/22110 Key: M-Key
RAID Options	SATA: Intel® C741 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay Optional 2 x 2.5" hot-swap SAS3/SATA drive bay
Network Controller	Dual 1G Ethernet Ports, Optional Dual Port 10G ethernet ports using AOC 1 x RJ45 Dedicated IPMI LAN port
Onboard I/O	SATA: 10 SATA3 (6Gbps) port(s) USB: 2 USB 2.0 port(s), 4 USB 3.2 Gen1 port(s) (2 rear; 1 via header; 1 type A) Video Output: 1 VGA D-Sub Connector port(s) Serial Port: 1 COM Port(s) (1 header) DOM: 2 SATA DOM (Disk on Module) power connector support TPM: 1 TPM Header
Cooling feature	Support upto 4 Nos. Hot swap and Redundant Cooling PWM Fans (3 Nos. Default and Optional 1 No. Fan)
Power Supply	600W/650W/800W/1200W/1600W/2400W Hot Swap Redundant Power Supply (92%-96% Efficiency) 80PLUS Platinum/Titanium Level
Other Features	System Management Software Silicon Root of Trust (RoT) Compliant Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
Other Management Features	System boot with OEM BIOS image Security against malicious codes/activity
Other Security Features	Provision for Cryptographic firmware updates Capability to stop execution of Application/ Hyperviser / Operating System on predefined security breach (through Windows group policy /Linux based OS configuration) Optional Secure /Automatic BIOS recovery Network Card secure firmware boot (depend upon Network Card) In case of any security breach system should provide the lock down feature (through Windows group policy /Linux based OS configuration management tool)
Compatible OS	RHEL CentOS Ubuntu Microsoft Windows 2022 VMware Windows Virtual
Dimension / Form Factor	2U Rack mountable
