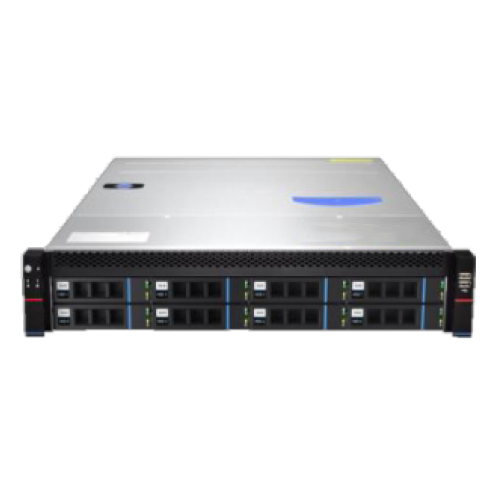

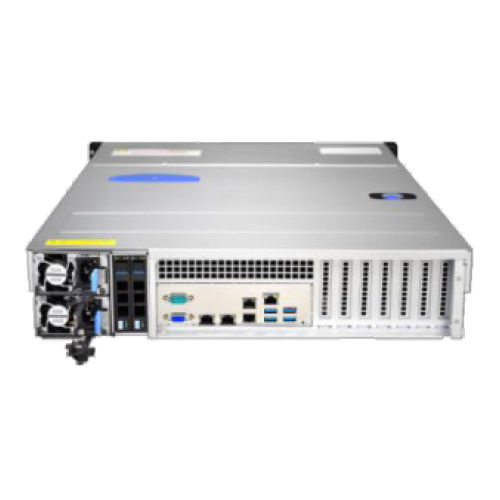

Invento i6402 Series

5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Up to 2TB 3DS ECC RDIMM, DDR5-5600/4800MT/s(1DPC) in 8 DIMM slots.
Upto 4 PCIe 5.0 x16 slots
8 / 12 x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bays
Dual ports of 1G / 10G LAN
Upto 4 No. Hot Swap Redundant Cooling fan(s)
600W / 650W/ 800W/1200W Redundant Power Supply (92%-94% Efficiency) 80PLUS Platinum Level

Model	i6402
Processor Support	1 x Intel® Xeon® Scalable 5th/4th Gen. processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP, Upto 60 cores Per Socket
Core Logic	Intel® C741
Memory	8 x DIMM slots; Up to 2TB 3DS ECC RDIMM, DDR5-5600/4800MHz 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
PCIe Expansion Slot	PCI-E Slots 4 PCIe 5.0 x16, 2 MCIO (PCIE5.0 x8) M.2 M.2 Interface: 1 PCIe 5.0 x4 Form Factor: 2280/22110 Key: M-Key
RAID Options	SATA: Intel® C741 controller for 9 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Drive Bays	8 / 12 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay Optional 2 x 2.5" hot-swap SAS3/SATA drive bays
Networking Controller	2 x RJ45 1GbE / 10GbE Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port
Cooling Features	Support upto 4 Nos. Hot swap and Redundant Cooling PWM Fans (3 Nos. Default and Optional 1 No. Fan)
Onboard I/O	SATA: 9 SATA3 (6Gbps) port(s) USB: 4 USB 3.0 port(s) Video Output: 1 VGA D-Sub Connector port(s) TPM: 1 TPM Header
Power Supply	600W / 650W/ 800W/1200WRedundant Power Supply (92%-96% Efficiency) 80PLUS Platinum Level
Dimension / Form Factor	2U Rackmount
