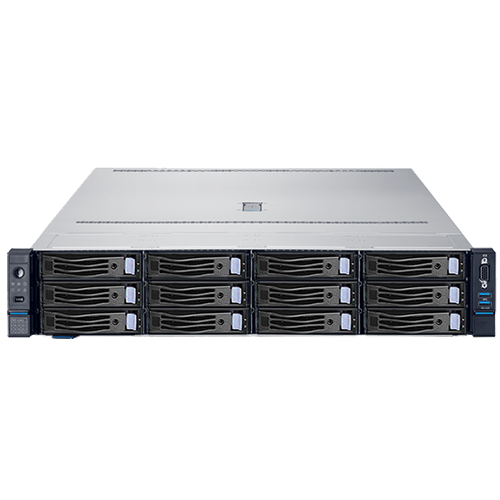

Invento i6402 EPYC Series

Invento i6402 EPYC Series

i6402 EPYC Series

Invento i6402 EPYC Series

Key Applications
  • HPC, AI/Deep Learning, Cloud Gaming, Design & Visualization, Diagnostic Imaging, VDI, Media/Video Streaming, Animation and Modelling, 3D Rendering
Salient Features
  • Supports 4 double-width GPUs
  • Supports additional 2 x double-width PCIe GPU, 1 x FL single-width PCIe GPU
  • 2 x AMD EPYCT™ 9004 processors
  • Front/back I/O, supports flexible operating scenario

Specification

Model i6402 EPYC Series
Processor Support Up to one or two 4th Generation AMD EPYCT™ processors up to 128 cores, 1150MB L3 cache per CPU up to 400W TDP
System Memory
  • Up to 24 x DDR5 DIMMs
  • 12 x DDR5 memory channels per processor, up to 4800MHz
  • RDIMM and 3DS RDIMM supported
Drive Bays
  • Front: 12 x 3.5-inch SATA/SAS/NVMe drives
  • Internal: 2 x SATA M.2 SSDs or 2 x PCIe M.2 SSDs
Expansion Slots
  • Supports up to 7 x PCIe Gen5 slots
  • 2 x OCP3.0 slots
On-Board Devices System on chip
Graphics ASPEED AST2600
Input/Output
  • Front: 1 x USB 2.0 port, 1 x USB 3.0 port, 1 x VGA port
  • Rear: 1 x VGA port, 2 x USB3.0 ports, 1 x BMC management network port, 1 x micro USB port
System Cooling 6 x hot-swap fans with N+1 redundancy
Power Supply 1300W/1600W/2000W CRPS standard PSUs with 1+1 redundancy Platinum Power Supplies
Security Features TPM 2.0, TCM, BMC/BIOS chip-level redundancy, power capping, etc.
Management Integrated with 1 x independent 1000 Mbps network port, dedicated for IPMI remote management
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltage, Memory
  • FAN:
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature:
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
Operating Environment Operating Temperature: 10°C to 35°C, Non operation temperature: (-40°F to 70°F)
Dimension / Form Factor
  • 2U Rackmount
  • Enclosure: 87mm (H) x 435mm (W) x 800mm (D)
