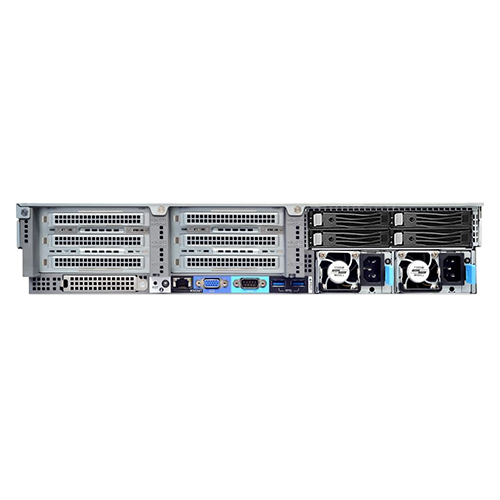

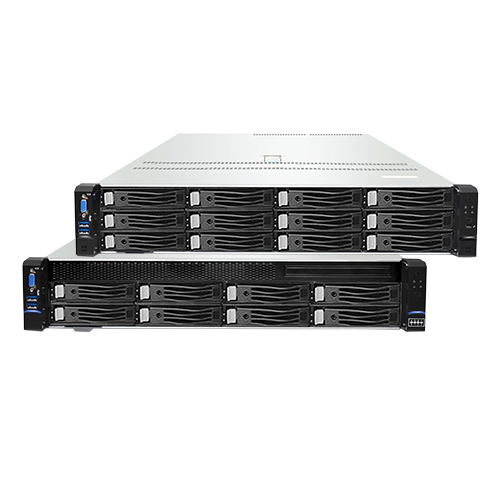

Invento i6409 EPYC

i6409 EPYC

Invento i6409 EPYC

Salient Features
  • AMD EPYCT™ 9004/9005* series Dual Socket processors
  • 24 x DDR5 DIMMs; 4800MT/s/6000MT/s, RDIMM/3DS RDIMM
  • Front: supports up to 8 x 3.5 "/12 x 3.5" hard drives
  • (Optional) Rear: supports up to 4 x 2.5" hard drives
  • supports 2 x M.2 (2280/22110, PCIe 3.0 x 4) up to 24 x NVMe
  • Supports up to 10 x standard PCIe expansion slots

Specification

Model i6409 EPYC
Processor Support 2 x AMD EPYCT™ 9004/9005" series processor, single CPU supports up to 128 physical cores, maximum power 400W, 4 xGMI links interconnection
Memory 24 x DDR5 DIMMs, up to 4800MT/s/6000MT/s, RDIMM/3DS RDIMM
Storage controller Optional supports for 12Gb/s SAS HBA and 12Gb/s SAS RAID card
Drive Bays
  • Front: supports up to 8 x 3.5"/12 x 2.5" hard drives
  • (Optional) Rear: supports up to 4 x 2.5" hard drives
  • Built in: supports 2 x M.2 (2280/22110, PCIe 3.0x4)
  • Supports up to 24 x U.2 NVMe
Expansion Slots Supports up to 10 x standard PCIe expansion slots
On-Board Devices System on chip
GPU
  • Supports up to 2 x FHFL-DW GPUs or
  • Supports up to 4 x FHFL-SW GPUs or
  • Supports up to 8 x HHHL-SW GPUs
Onboard I/O
  • 1 x 1Gb RJ45 dedicated management network port
  • Optional supports for 1 x OCP 3.0 network card, NCSI, optional 4 x 1GbE/2 x 10Gb SFP+/4 x 10Gb SFP+/2x 25Gb SFP28 or other standard compliant cards
  • Front: 1 x VGA, 2 x USB 3.0
  • Rear: 1 x VGA, 2 x USB 3.0, 1 x RJ45 management network port, 1 x COM
Management Integrated BMC management chip AST2600 for management functions, supporting IPM 2.0 Redfish, SOL, KVM, Virtual media and other functions
Security Optional TPM security module, chassis open cover intrusion detection, locked chassis cover (tool free), BMC dual-flash redundancy
Power Supply
  • It can be configured with 2 x power modules, supporting 1+1 redundancy and hot plugging
  • Optional 800W/1300W/1600W/2000W/2400W high-efficiency Platinum/Titanium power supply Supports 220V AC/240V DC
PC Health Monitoring
  • Four hot swappable fans, supporting N+1 redundancy, intelligent speed regulation, and abnormal alarm
  • Working temperature: 5 °C to 35 °C
  • Storage temperature: -40 °C to 65 °C
Operating Environment
  • Working relative humidity: 8% to 90% (non-condensing)
  • Storage relative humidity: 5% to 95% (non-condensing)
Chassis 2U Chassis
Dimension / Form Factor 2U Rackmount
Enclosure 87mm (H) x 448mm (W) x 763mm (D); (including 783mm hanging ears)
