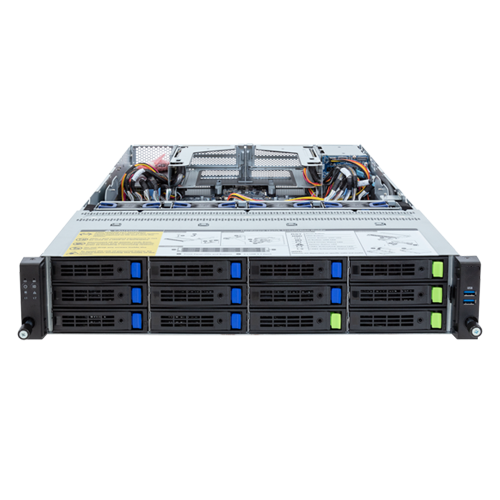

Invento i6416 EPYC Series

Supports Dual AMD EPYCTM 9004 Series processors
Up to 24 Memory DIMM slots
12 x 3.5" hot-swap hybrid SATA/SAS drive bays
Dual 1G Ethernet Ports
4 Nos. x 8cm heavy duty PWM fans with optimal fan speed controlled
1600W Redundant Platinum/Titanium level power supplies Platinum Level (92%-96% Efficiency)

Model	i6416 EPYC
Processor Support	2 X AMD EPYC 9004 Series processors 5nm technology Up to 128 cores, 256 threads per processor
Core Logic	System on Chip
Memory	24 x DIMM slots; DDR5 memory supported only 12-Channel memory architecture per processor RDIMM modules up to 96GB supported 3DS RDIMM modules up to 256GB supported Memory speed: Up to 4800 MHz
PCIe Expansion Slot	PCI-Express: 4 x FHHL PCIe Gen5 x16 slots 2 x OCP 3.0 Gen5 x16 slots M.2: 3 x M.2 slots with PCIe Gen3 x4 and x2 interface Supports 2280/22110 cards
Graphics	Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp, DDR4 SDRAM
Drive Bays	8 x 3.5"/2.5" SATA/SAS4 hot-swappable bays 4 x 3.5"/2.5" NVMe/SATA/SAS4 hot-swappable bays 2 x 2.5" SATA/SAS4 hot-swappable bays on rear side
IPMI	1 x Dedicated management port
Cooling Features	4 x 8cm heavy duty fans with optimal fan speed control

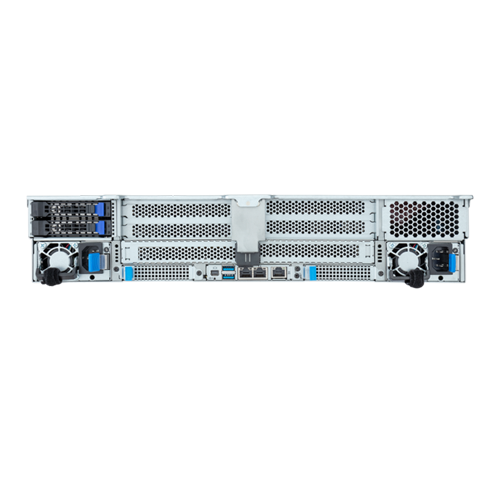

Onboard I/O	USB: 4 x USB 3.2 Gen1 Video Output: 1 x Mini-DP port N/W Ports: 2 x 1G RJ45 Ports, 1 x Management LAN port TPM: TPM Header
Power Supply	1600W (1+1) Redundant Platinum/Titanium level power supplies Level (92%-96% Efficiency)
Dimension / Form Factor	2U Rackmount
