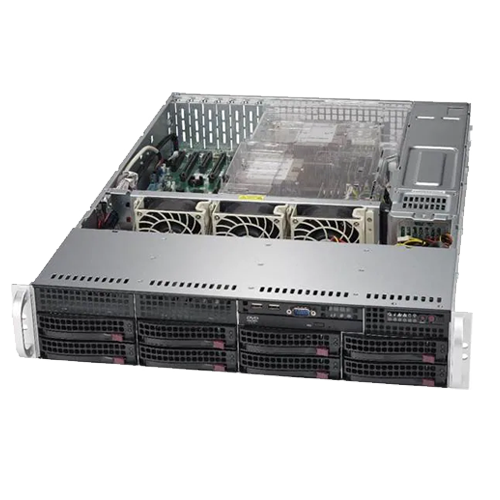

Invento i641e Purley Series

i641e

Invento i641e Purley Series

Salient Features
  • Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 8x DIMM slots
  • 2 PCI-E 3.0 x8 (in x16), 4 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • 2 GbE LAN ports
  • 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
  • 8 x 3.5" hot-swap SAS3/SATA drive bay, 2 x 3.5" fixed drive bay
  • 740W Redundant Platinum Power Supply

Specification

Model i641e
Processor Support 1 X Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
Core Logic Intel® C621 Chipset
Memory
  • 8 x DIMM slots;
  • Up to 1TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • PCI-E:
    • 2 PCI-E 3.0 x8 (in x16 slot)
    • 4 PCI-E 3.0 x8
    • 1 PCI-E 3.0 x4 (in x8 slot)
  • M.2:
    • M.2 Interface: PCI-E 3.0 x4 and SATA
    • Form Factor: 2280, 22110
    • Key: M-Key
    • Double Height Connector
RAID Options SATA: Intel® C621 controller for 8 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" hot-swap SAS3/SATA drive bay
  • 2 x 3.5" fixed drive bay
Network Controllers Dual LAN with 1GbE with Intel® I210
IPMI Aspeed AST2500
Cooling Feature 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Onboard I/O
  • SATA: 8 SATA3 (6Gbps) port
  • LAN: 2 RJ45 Gigabit Ethernet LAN ports
  • USB: 8 USB 2.0 ports (2 rear + 6 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 2 COM Ports (1 rear, 1 header)
  • TPM: TPM Header
Power Supply 740W Redundant Platinum Power Supply (94% efficiency)
Dimension / Form Factor 2U Rackmount
