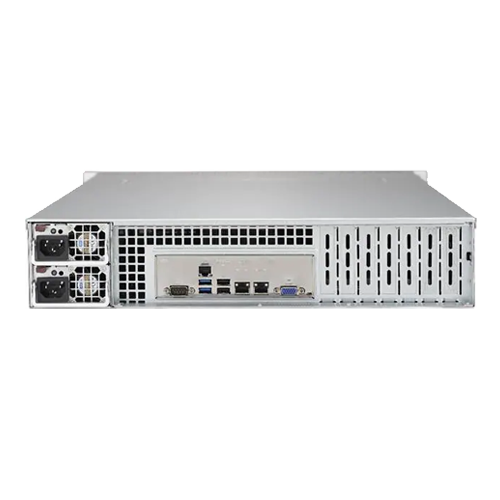

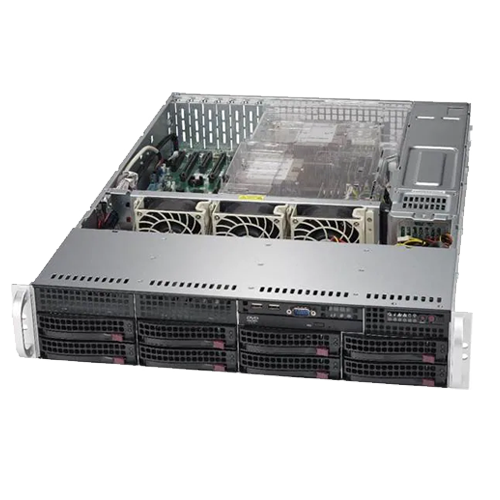

Invento i642 Purley Series

i642

Invento i642 Purley Series

Salient Features
  • Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
  • Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot), M.2 Interface: 1 SATA/PCI-E 3.0 x4, M.2 Form Factor:2260, 2280, M.2 Key: M-Key
  • Dual LAN with Lewisburg Marvell 88E1512 PHY
  • 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 2 x 3.5" fixed drive bay
  • 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
  • 740W Redundant Platinum Power Supply

Specification

Model i642
Processor Support 2 X Intel Xeon Scalable Processors, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Core Logic Intel C621 Chipset
Memory
  • 8 x DIMM slots;
  • Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM
PCIe Expansion Slot
  • 2 PCI-E 3.0 x16,
  • 3 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x4 (in x8 slot),
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4,
  • M.2 Form Factor: 2260, 2280,
  • M.2 Key: M-Key
RAID Options SATA: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays
  • 8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  • 2 x 3.5" fixed drive bay
Networking
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN Port
Cooling Feature Fans: 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) port
  • USB: 4 USB 2.0 ports (2 rear + 2 headers), 3 USB 3.0 ports (2 headers+ 1 Type A)
  • Video Output: 1 VGA port
  • Serial Port / Header: 1 COM Port (1 header)
  • TPM: 1 TPM Header
Power Supply 740W Redundant Platinum Power Supply 80 PLUS (94% Efficiency)
Dimension / Form Factor 2U Rackmount
