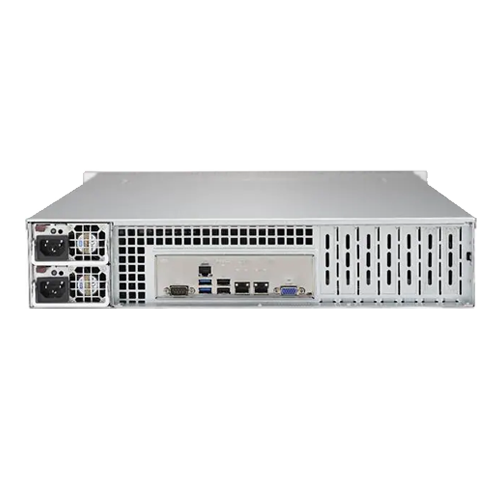

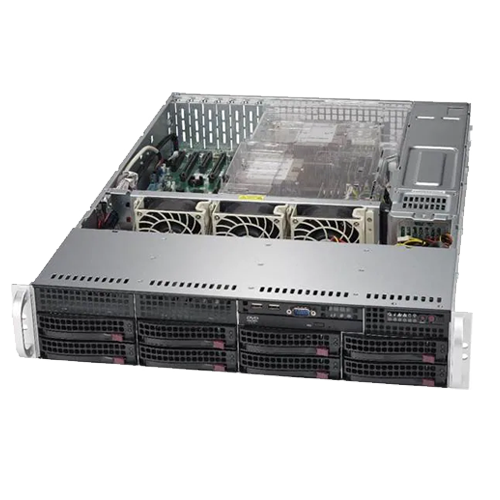

Invento i643 Purley Series

Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6x DIMM slots
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 (in x8)
2 GbE LAN ports
M.2 NGFF connector, M.2 Interface: PCI-E 3.0 x4, Form Factor: 2242, 2280, Key: M-Key, Double Height Connector
8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards, 2 x 3.5" fixed drive bay
3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
740W Redundant Platinum Power Supply

Model	i643
Processor Support	1 X Intel® Xeon® Scalable Processors, Single Socket P (LGA 3647) supported, CPU TDP support 165W
Core Logic	Intel® C621 Chipset
Memory	6 x DIMM slots; Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot	2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 (in x8)
RAID Options	SATA: Intel® C621 controller for 12 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays	8 x 3.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards 2 x 3.5" fixed drive bay
Networking	2 x 1GbE LAN ports
Network Controllers	Dual LAN with 1GbE with Marvell® 88E1512
Graphics	Aspeed AST2500 BMC
Cooling Feature	Fans: 3 x 8cm (7000 RPM) hot-swap PWM cooling fan(s)
Onboard I/O	SATA: 12 SATA3 (6Gbps) port USB: 6 USB 2.0 ports (2 rear + 4 headers), 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) Video Output: 1 VGA port Serial Port / Header: 2 COM Ports (1 rear, 1 header) TPM: TPM Header
Power Supply	740W Redundant Platinum Power Supply 80 PLUS (94% Efficiency)
Dimension / Form Factor	2U Rackmountable
