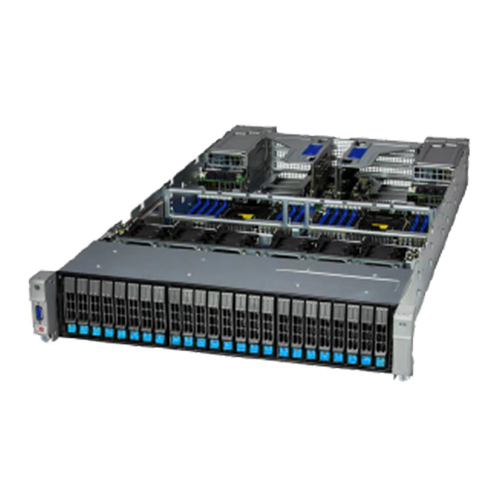

Invento i6444 Series

Invento i6444 Series

i6444

Invento i6444 Series

Salient Features
  • Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  • 64 DIMM slots supporting up to 16TB of memory; RDIMMs up to DDR5-5600
  • Optional PCIe configurations up to 8 PCIe slots with support for two double-width GPU/Accelerator cards
  • Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays; 2x internal M.2 NVMe/SATA drive slots
  • 6 heavy duty hot-swap fans with optimal fan speed control (Note: Liquid cooling solution is available optionally)
  • 1600W (2+2) Redundant Titanium Level power supplies

Specification

Model i6444
Processor Support
  • Quad Socket E (LGA-4677)
  • 4th Gen Intel® Xeon® Scalable processors
Core Logic Intel® C741 chipset
Memory
  • 64 x DIMM slots;
  • Up to 16TB 3DS ECC RDIMM, DDR5-4800MHz
Expansion Slot
  • Default
    • 3 PCIe 5.0 x8 FHHL slot(s)
    • 3 PCIe 5.0 x16 FHHL slot(s)
    • 1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • Option A
    • 2 PCIe 5.0 x16 FHHL slot(s)
    • 1 PCIe 5.0 x8 AIOM slot(s) (OCP 3.0 compatible)
    • 1 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
  • M.2
    • 2 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)
Drive Bays 24 x 2.5" hot-swap NVMe/SATA/SAS drive bays
Networking
  • 1 RJ45 Dedicated BMC LAN ports
  • Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
Cooling Features
  • Fans:
    • 4 Direct to Chip (D2C) Cold Plate Fan(s) (optional)
    • 6 Heavy duty counter-rotating 6cm Fan(s) (optional)
  • Liquid Cooling:
    • Direct to Chip (D2C) Cold Plate (optional)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Onboard I/O
  • USB: 2 USB 3.0 ports, 2 USB 2.0 port(s) (front)
  • Video Output: 1 VGA port(s), 1 DisplayPort port(s)
  • TPM: TPM Header
Features
  • Hardware:
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
  • Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
Power Supply 1600W (2+2) Redundant Titanium level power supplies Level (96% Efficiency)
Dimension / Form Factor 2U Rackmount
