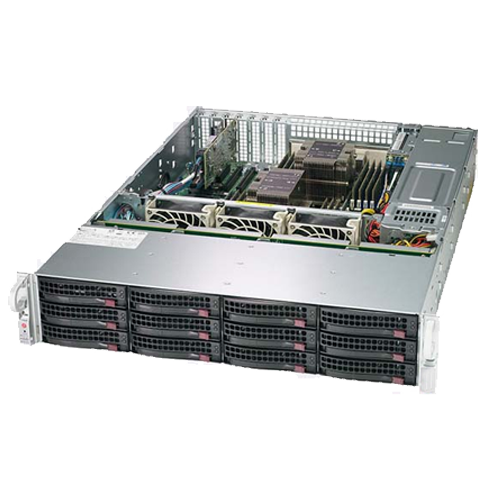

Invento i646 Purley Series

i646

Invento i646 Purley Series

Salient Features
  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM; 16 DIMM slots
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port
  • 12 Hot-swap 3.5" SAS3/SATA3 direct attached drive bays
  • Broadcom 3108 SAS3 AOC
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
  • 3 Hot-swap 8cm redundant PWM fans
  • 1200W Redundant Power Supplies Titanium Level (96%)

Specification

Model i646
Processor Support 2 X Intel® Xeon® Scalable P rocessors, 3 UPI up to 10.4GT/s
Core Logic Intel® C622 Chipset
Memory
  • 16 x DIMM slots;
  • Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM
PCIe Expansion Slot
  • 3 PCI-E 3.0 x 16
  • 4 PCI-E 3.0 x 8 (slot 2 & 3 occupied by controller and JBOD expansion port
RAID Options
  • SAS: SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
  • RAID 0, 1, 5, 6, 10, 50, 60
  • SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • Hot-swap:
    • 12 Hot-swap 3.5" SAS3/SATA3 drive bays
    • 2 Hot-swap 2.5" SATA3 drive bays (rear)
  • Optional:
    • 4 U.2 NVMe
    • 2 M.2 NVMe
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Networking
  • 2 RJ45 10GBase-T LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
Cooling Feature 3 Hot-swap 8cm redundant PWM cooling fans

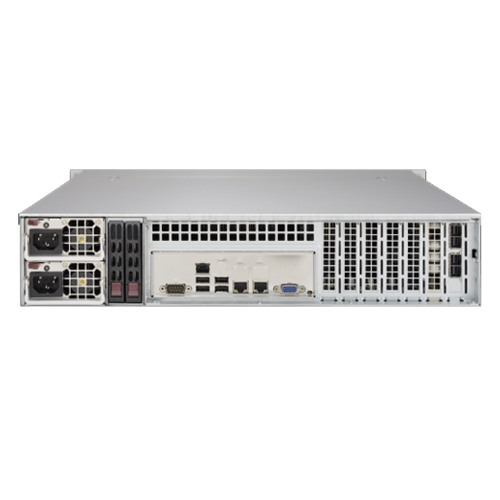

Onboard I/O
  • USB: 4 USB 3.0 ports (rear), 1 Type A
  • Video: 1 VGA port
  • Serial Port / Header: 1 Fast UART 16550 port / 1 Header
Power Supply 1200W Redundant Power Supplies Titanium Level (96%) 80PLUS
Dimension / Form Factor 2U Rackmount
