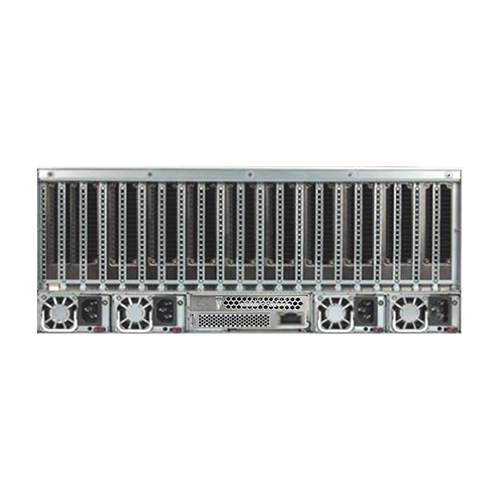

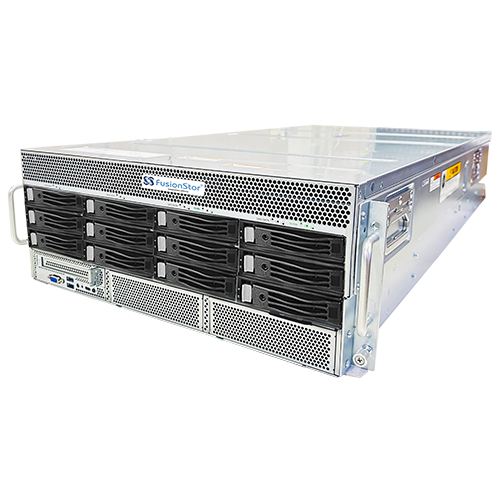

Invento i6480 Series

i6480

Invento i6480 Series

Salient Features
  • 5th/4th Gen. Intel® Xeon® Scalable Dual Socket E (LGA-4677) Processors
  • Intel® C741 Chipset
  • Supports upto 8/10 x DW GPU slots
  • Supports PCIe 5.0/ CXL
  • AIOM/OCP 3.0 Support
  • 32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-4800/5600
  • Support upto 12 x 3.5"/2.5" Storage Drives
  • (2+2) 2700W or (3+1) 3200W Redundant Power Supplies

Specification

Model i6480
Processor Support
  • Dual Socket 5th/4th Gen. Intel® Xeon® Scalable Processors
  • Intel® Xeon® CPU Max Series
  • Dual processor, CPU TDP up to 350W
On-Board Devices Intel® C741 Chipset
System Memory
  • 32 x DIMM slots;
  • Up to 8TB ECC RDIMM, DDR5-4800/5600MHz
  • Supports RDIMM & LRDIMMs
Expansion Slot
  • 8 GPU Option
    • Rear PCIe Slots: 8 x PCIe 5.0 FHFL DW GPU + 4 PCIe 5.0 x FHHL + 1 x OCP slot
    • Front PCIe Slots: 1 x FHHL
  • 10 GPU Option:
    • Rear PCIe Slots: 8 x PCIe 5.0 FHFL DW GPU + 5 PCIe 5.0 x FHHL + 1 x OCP slot
    • Front PCIe Slots: 2 x FHHL + 1 x OCP slot/FHHl
Drive Bays
  • 1 x 2280 M.2 (SATA/NVMe) onboard
  • 12 Nos. x 3.5"/2.5" NVMe/SATA/SAS drives
System Cooling 12 Nos. heavy duty fans with optimal fan speed control
Management Dedicated RJ45 Management Port
Graphics ASPEED AST2600 BMC
Onboard I/O
  • USB: 2 x USB 3.0/2.0 Ports
  • Video Output: 1 x VGA
Button & LEDs
  • 1 x PWR BTN with LED
  • 1 x Front UID BTN with LED + 1 x Rear UID LED
Security TPM Header
System BIOS BIOS Type: AMI 256MB SPI Flash
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltages, Memory
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated(PWM) fan connectors
  • Temperature
    • Monitoring for CPU and Chassis environment
    • Thermal Control for fan connectors
Operating Environment
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
Power Supply (2+2) 2700W or (3+1) 3200W Redundant Platinum/Titanium level Power Supplies
Dimension / Form Factor
  • 4U Rackmount
  • Enclosure: 175mm (H) x 447mm (W) x 900mm (D)
Chassis 4U Chassis
