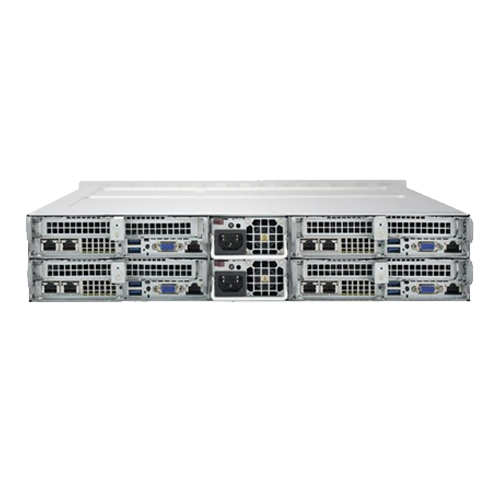

Invento i651 Purley Series

i651

Invento i651 Purley Series

Salient Features
  • Compute Intensive Application
  • HPC, Data Center
  • Enterprise Server
  • Financial Analysis
  • Mission-critical applications
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 2 PCI-E 3.0 x16 slots
  • 3 Hot-swap 3.5" SAS/SATA drive bays
  • Flexible Networking support via SIOM; Dedicated IPMI 2.0 LAN
  • 2200W Redundant Power Supplies Titanium Level (96%)

Specification

Model i651
Processor Support 2 X Intel® Xeon® Scalable Proc essors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 Chipset
Memory
  • 16 x DIMM slots;
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot 2 PCI-E 3.0 x16 slots
RAID Options Broadcom 3108 SAS3 (12Gbps) controller; RAID 0, 1, 5 support
Drive Bays 3 Hot-swap 3.5" SAS/SATA drive bays
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Networking
  • 1 RJ45 Dedicated IPMI LAN port
  • Flexible Networking support via SIOM;
Graphics ASPEED AST2500 BMC
Power configurations ACPI Power Management
Onboard I/O
  • SAS: 3 SAS3 (12Gbps) ports
  • USB: 2 USB 3.0 ports total (rear)
  • VGA: 1 VGA port
  • Serial Port / Header: 1 Fast UART 16550 port / 1 Header (internal)
  • Others: 2 SATADOM support on the motherboard
Power Supply 2200W Redundant Power Supplies Titanium Level 80PLUS
Dimension / Form Factor 2U Rackmount
