Invento i6510 EPYC

i6510 EPYC

Invento i6510 EPYC

Key Applications
  • Al/Deep Learning Training, Cloud Gaming, Design & Visualization,
  • Diagnostic Imaging, VDI Media/Video Streaming, Animation and Modeling,
  • 3D Rendering, Virtualization
Salient Features
  • 2 x AMD EPYC 9005/9004 series processors, supporting up to 400W
  • 24 x DDR5 memory slots, 1DPC, up to 6000MHz; Supports RDIMM/3DS RDIMM
  • Supports upto 8/10 x DW GPU slots
  • 8/12 x 3.5"/2.5" or 24 x 2.5" Hot-Swap NVMe/SATA/SAS drive bays
  • Supports up to 2 x M.2 (2280/22110, PCIe 4.0x4)

Specification

Model i6510 EPYC
Processor Support
  • Supports 2 x AMD EPYC 9005/9004 series processor,
  • maximum power 500W
System Memory
  • 24 x DDR5 memory slots, each CPU supports 12 memory channels, supporting up to 6000MHz
  • Supports for RDIMM, 3DS RDIMM
Storage Controllers Optional supports for 12Gb/s SAS HBA and 12Gb/s SAS RAID card
Expansion Slots
  • Support 8/12 x 3.5-inch hard disks
  • Supports 8/16/24 x 2.5-inch hard disks
  • Supports optional 2/4 U.2 NVMe SSDs
  • 1 x M.2 SSD, 2280&22110 size, supports PCIe 3.0 x4
OR
  • Support 8/12 x 3.5-inch hard disks
  • Supports 8/16/24 x 2.5-inch hard disks
  • Supports optional 4/8 U.2 NVMe SSDs 1 M.2 SSD, 2280&22110 size, supports PCIe 3.0 x4
Expansion Slot: 8 GPU Option:
  • Support 8 full-height, full-length, double-width
  • PCIe 4.0/5.0 GPU cards;
  • In addition to 8 GPUs, it supports
  • up to 1 PCIe 4.0/5.0 x16 + 2 PCIe 4.0/5.0 x8
OR
10 GPU Option:
  • Supports 8 full-height, full-length, double-width GPU cards (meets 10-card configuration)
  • In addition to 8 GPUs, supports 5 PCIe5.0 x16 (4 from switch, 1 from CPU)
On-Board Devices: System on chip
Input/Output

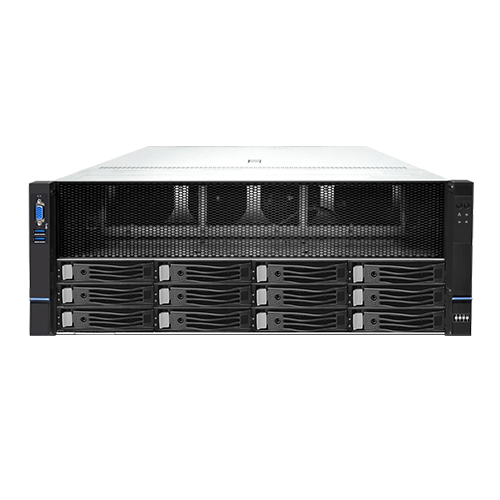

  • Front: 1 x VGA, 2 x USB 3.0

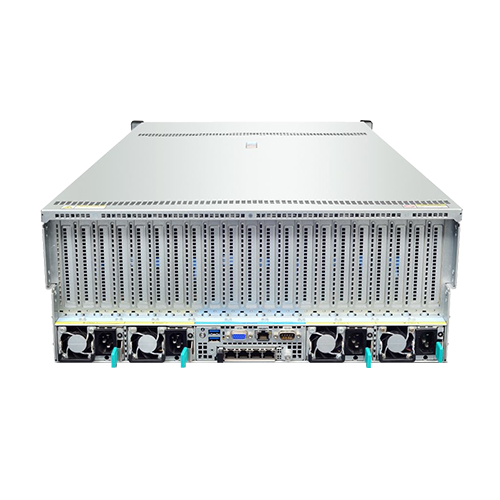

  • Rear: 1 x VGA, 2 x USB 3.0, 1 x RJ45 management network port, 1 x COM

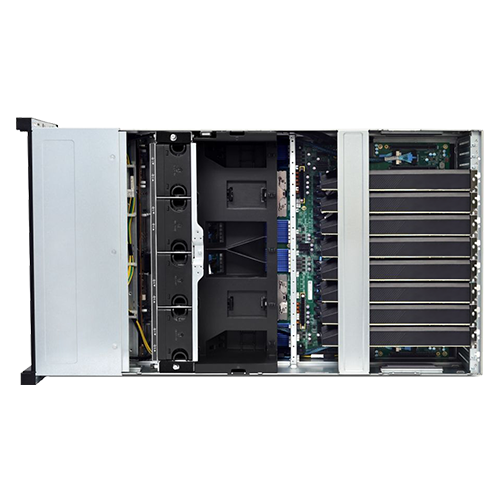

System Cooling 4 hot-swappable fan modules, support N+1 redundancy, support intelligent speed regulation and abnormal alarm
Security Optional TPM/TCM security module, chassis cover intrusion detection, and locked chassis cover
Management
  • Integrated BMC management chip, supports IPMI2.0, Redfish, SOL, KVM, virtual media and other functions
  • Provide 1 x 1Gbps RJ45 dedicated management port
Power Supply
  • Can be configured with 4 power modules, supports N+1 redundancy, supports hot swap
  • Optional 220v AC/240v DC/336v DC/-48v DC input
  • Optional 1600W/2000W/2400W/2700W/3000W high-efficiency Platinum/Titanium power supply
PC Health Monitoring:
  • CPU: Monitors for CPU Cores, Chipset Voltages, Memory
  • FAN:
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
Dimension / Form Factor
  • 4U Rackmount
  • Enclosure: 175mm (H) x 448mm (W) x 772mm (D) (including mounting ears 792mm)
    • Enclosure: 175mm (H) x 448mm (W) x 822mm (D) (including mounting ears 842mm)
Operating Environment Working relative humidity: 10% to 35% (non-condensing)
*BIOS need to be upgraded
