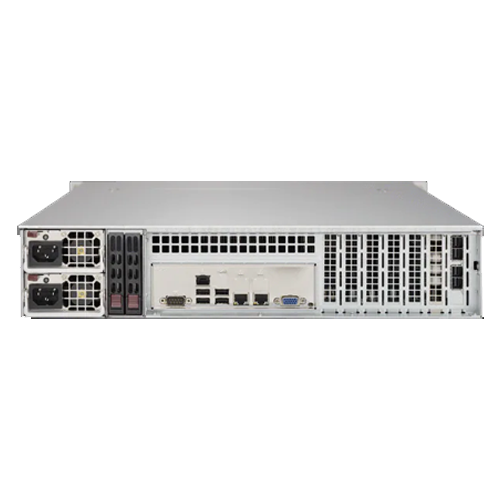

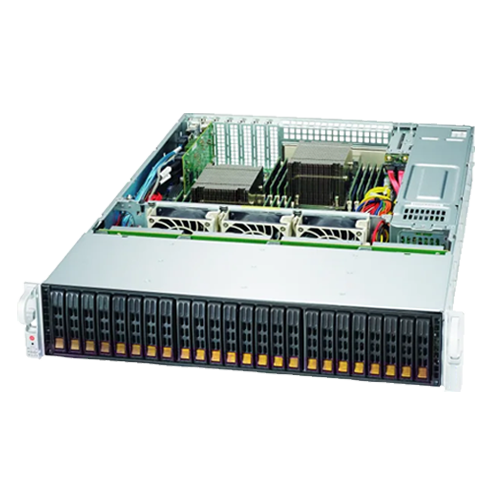

Invento i671e Purley Series

2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W TDP, 3 UPI up to 10.4 GT/s
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)
3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8
24 x 2.5" hot-swap SAS/SATA drive bay, optional 2 x 2.5" hot-swap drive bay
Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
3 High-performance 8cm PWM fans
920W Redundant Platinum Super Quiet power supply

Model	i671e
Processor Support	2 X 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W TDP, 3 UPI up to 10.4 GT/s
Core Logic	Intel® C621 Chipset
Memory	16 x DIMM slots; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane DC Persistent Memory in memory mode (Cascade Lake only)
PCIe Expansion Slot	PCI-E: 3 PCI-E 3.0 x16 4 PCI-E 3.0 x8 M.2: M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key (RAID 0,1 support)
RAID Options	SATA: Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Drive Bays	24 x 2.5" hot-swap SAS/SATA drive bay Optional 2 x 2.5" hot-swap drive bay
Networking	Dual LAN with 1GbE with Intel® X722 + Marvell 88E1512
Cooling Feature	3 x 8cm high-performance PWM fan(s) Optional 5 x 6cm 4pin high performance fan(s)
Graphics	ASPEED AST2500
Software Features	IPMI2.0 Intel® Node Manager KVM with dedicated LAN
Onboard I/O	SATA: 10 SATA3 (6Gbps) ports LAN:- 2 1GbE LAN ports USB:- 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A) Video Output:- 1 VGA port Serial Port / Header:- 1 COM Port (1 rear) TPM:- 1 TPM Header
Power Supply	920W Redundant Platinum Super Quiet power supply 80PLUS (94% Efficiency)
Dimension / Form Factor	2U Rackmount
