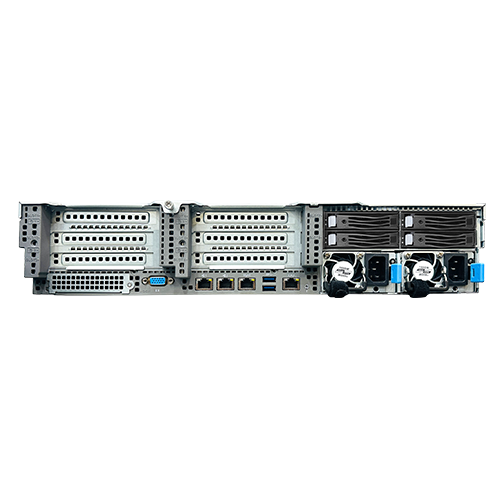

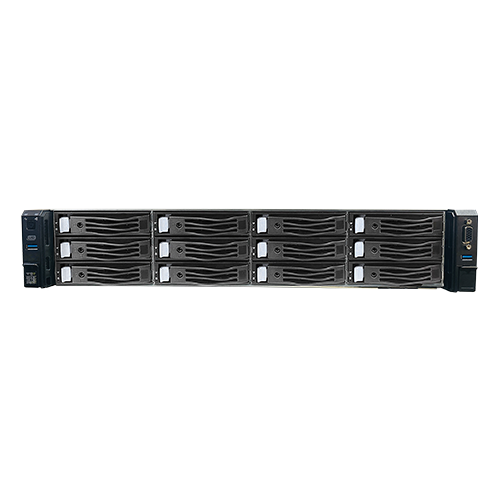

Invento i6A26 Series

i6A26

Invento i6A26 Series

Salient Features
  • Dual Ampere® Arm platforms with Altra™ and Altra Max™ processors up to max TDP 250W and 128 cores
  • Scalability: Supports Ampere's next-generation CPU Altra Max with up to 128 cores
  • High-speed memory: 2DPC 3200 memory
  • Moduler design: Fast switch between storage, computing, and balanced deployment
  • Comprehensive competence: 2*FHFL DW GPU for AI training or up to 8*FHHL AI inference cards (4* x16+4* x8)
  • Easy maintenance: Tool-free chassis disassembly
  • Flexible storage: 12 front NVMe/SAS/SATA and 4 rear SAS/SATA with an Any Bay design + 2*M.2(x4 PCIe) on board
  • Multi-core, multithreading and high performance, suitable for high concurrency and virtualization scenarios
  • Diverse choices: Front HDD/SSD/NVMe customizeable on demand

Specification

Model i6A26
Processor Support 2 x Ampere® Altra™ LGA4926 Pins CPUs; up to 250W
Memory 32 x DDR4 DIMM Slots, up to 3200MT/s
Expansion Slot
  • Max 8 x PCIe Slots + 1x OCP 3.0
    [Riser 1: FHFLx16 + FHFLx16 + FHHLx8, Riser 2: FHFLx16 + FHFLx16 + FHHLx8, Riser 3: FHFLx8 + FHFLx8 (Optional) ]
  • 1 x SFF OCP3.0 (Multihost)
Drive Bays
  • Front: 12 x 3.5"/2.5" Hot-Swap NVMe/SATA/SAS drive bays
  • Optional 4 x 2.5" drives (Rear)
  • 2 x 2280 M.2 (SATA/NVMe) onboard
Button & LEDs
  • 1 x PWR BTN with LED
  • 1 x Front UID BTN with LED + 1 x Rear UID LED
System Cooling 4 x 8cm heavy duty fan(s)
Security TPM header for TPM2.0/TCM2.0
Integrated Network 1 x 1GbE dedicate IPMI Port
Management IPMI 2.0 management, ASPEED AST2500 BMC
PC Health Monitoring
  • CPU: Monitors for CPU Cores, Chipset Voltages, Memory
  • FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
  • Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
Operating Environment Operating Temperature: 5°C ~ 35°C
Onboard I/O
  • 2 x Front & 2 x Rear USB 3.0, Type-A
  • 1 x Front VGA +1x Rear VGA
  • 1 x Rear COM port (DB9)
Power Supply
  • 1+1 Redundant CRPS (Platinum/Titanium)
  • 800W/ 1300W/ 1600W/ 2000W
Chassis 2U Chassis
Dimension / Form Factor
  • 2U Rackmount
  • Enclosure: 87mm (H) x 436mm (W) x 815mm (D)
