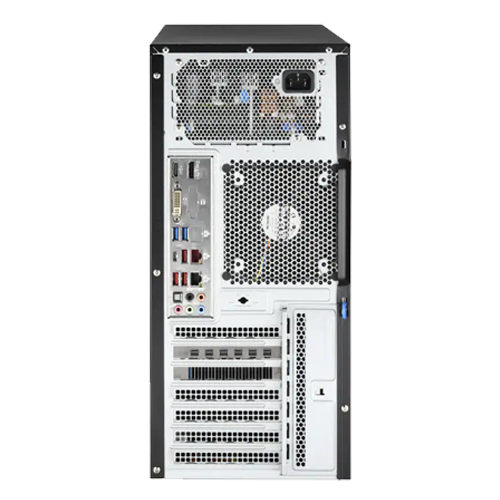

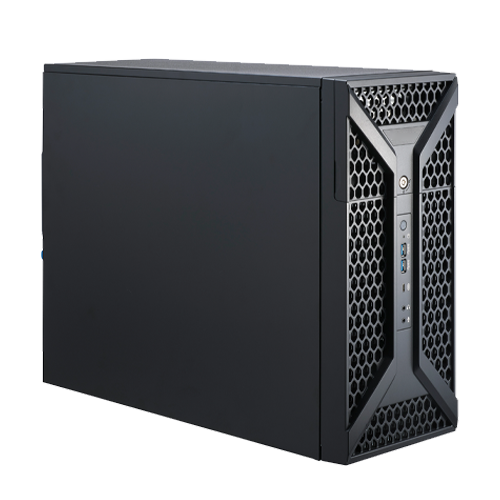

Invento i7004 Ryzen Series

i7004

Invento i7004 Ryzen Series

Salient Features
  • AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
  • Up to 2TB Registered ECC DDR4 3200-MHz Memory; 8 DIMM Slots
  • 6 Nos. PCI-E 4.0 x16 slots
  • 2 x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
  • Kensington Lock Security Supported
  • Security door for Mobile Racks
  • 1 x Rear 12cm (1850 RPM) PWM Fan
  • 650W/750W/850W/900W/1000W/1200W Gold/Platinum Level Power Supply Units 80 PLUS

Specification

Model i7004
Processor Support 1 X AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
Core Logic AMD WRX80 Chipset
Memory
  • 8 x DIMM slots;
  • Up to 2TB Registered ECC DDR4 3200-MHz Memory
PCIe Expansion Slot
  • PCI-Express: 6 PCI-E 4.0 x16 slots
  • M.2:
    • M.2 Interface: 4 PCI-E 4.0 x4
    • Form Factor: 2280, 22110
    • Key: M-Key
  • U.2:
    • Interface: 2 U.2 Sockets
    • Software RAID 0,1 support
Drive Bays
  • 2 x 5.25" External HDD Drive Bays &
  • 4 x 3.5" Internal HDD Drive Bays
Network Controllers
  • 10G LAN: Single LAN via Marvel AQC110C 10G Ethernet Controller
  • 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI)
Onboard I/O
  • USB: 1 USB 3.2 Gen2x2 port (Type C, 20Gbps), 5 USB 3.2 Gen2 ports (4 Type A, 1 Type C header, 10Gbps), 5 USB 3.2 Gen1 ports (3 Type A, 1 via header), 2 USB 2.0 via header
  • 1 VGA port (dedicated for IPMI)
  • 1 COM port (rear)
  • 1 TPM 2.0 header
Cooling Feature
  • 1 x 12cm rear exhaust fan(s)
  • Optional 1 x 12cm (front) cooling fan
Power Supply 650W/750W/850W/900W/1000W/1200W Gold/Platinum Level Power Supply Units 80 PLUS (90-92% efficiency)
Dimension / Form Factor Tower
