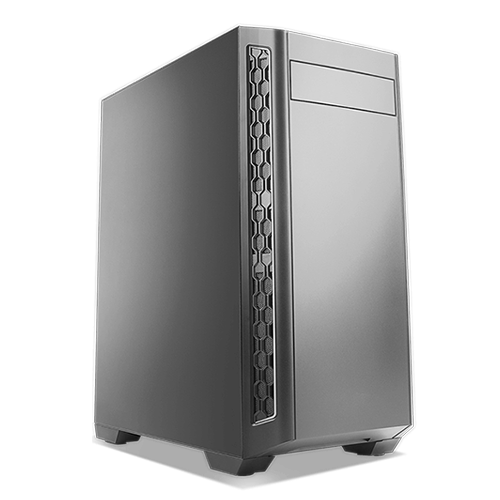

Invento i7007 Series

Invento i7007 Series

i7007

Invento i7007 Series

Salient Features
  • 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors; 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
  • Intel® Q570 Express Chipset
  • Upto 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, 1 x PCI slot
  • 2 x RJ-45 ports
  • 1 x 5.25" External HDD Drive Bays & 2 x 3.5" Internal HDD Drive Bays
  • High Definition Audio
  • Cooling Fans: 2-3 Cooling Fans
  • 500W Bronze Level Certified High-Efficiency Power Supply (88% Efficiency)

Specification

Model i7007
Processor Support 1 X 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors; 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
*Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Core Logic Intel® Q570 Express Chipset
Memory
  • 4 x DIMM slots;
  • Supports upto 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz
PCIe Expansion Slot
  • 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  • 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    *Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
  • L3 cache varies with CPU
RAID Options SATA: Support for RAID 0, RAID 1, RAID 5, and RAID 10
Drive Bays
  • 1 x 5.25" External HDD Drive Bays &
  • 2 x 3.5"/2.5” Internal HDD Drive Bays
Network Controllers 2 x RJ-45 ports
Onboard I/O
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 2 x DisplayPorts
  • 1 x USB 3.2 Gen 2 Type-A port (red)
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 2 x RJ-45 ports
  • Audio jacks
Cooling Feature Cooling Fans: 2-3 Cooling Fans
Power Supply 500W Bronze Level Certified High-Efficiency Power Supply (88% Efficiency)
Dimension / Form Factor Tower
