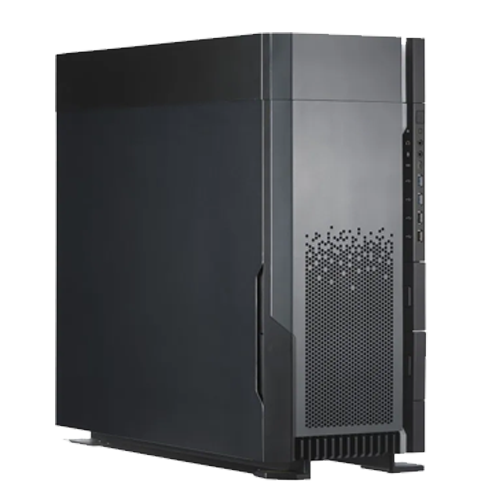

Invento i7014 Ryzen Series

i7014

Invento i7014 Ryzen Series

Salient Features
  • AMD Ryzen Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
  • Up to 2TB Registered ECC DDR4 3200-MHz Memory; 8 DIMM Slots
  • 6 Nos. PCI-E 4.0 x16 slots
  • 4 fixed internal 3.5"/2.5" SATA drive bays
  • 1 x 10GBase-T LAN port, 1 x 1GbE LAN port (shared with IPMI)
  • 7.1 HD Audio
  • Internal Cooling Fans
  • 2000W Platinum Level Power Supply

Specification

Model i7014
Processor Support 1 X AMD Ryzen Threadripper PRO 5000WX/3000WX Series processor Socket sWRX8/SP3; Supports CPU TDP up to 280W
Core Logic AMD WRX80
Memory
  • 8 x DIMM slots;
  • Up to 2TB Registered ECC DDR4 3200-MHz Memory
PCIe Expansion Slot
  • PCI-E: 6 PCI-E 4.0 x16 slots
  • M.2:
    • M.2 Interface: 4 PCI-E 4.0 x4
    • Form Factor: 2280, 22110
    • Key: M-Key
  • U.2:
    • Interface: 2 U.2 Sockets
    • Software RAID 0,1 support
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • Fixed:
    • 4 internal fixed 3.5"/2.5" SATA3 drive bays
    • 2 front fixed 2.5" SATA3 drive bays
  • Peripheral Bay(s): 2 x 5.25" drive bays
Network Controllers
  • 10G LAN: Single LAN via Marvel AQC110C 10G Ethernet Controller
  • 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI)
Onboard I/O
  • USB: 1 USB 3.2 Gen2x2 port (Type C, 20Gbps), 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps), 5 USB 3.2 Gen1 ports (3 Type A, 1 via header), 2 USB 2.0 via header
  • Video: 1 VGA port (dedicated for IPMI)
  • Audio: 7.1 HD Audio with optical S/PDIF
  • Serial Port / Header: 1 COM port (rear)
  • TPM: 1 TPM 2.0 Header
Cooling Feature
  • 1 x 12cm rear exhaust fan
  • 3 x 12cm front cooling fans (optional)
  • 3 x 12cm top cooling fans (optional)
Power Supply 2000W Platinum Level Power Supply 92% efficeincy
Dimension / Form Factor
  • 5U Tower/ Rackmountable
  • Optional Rackmount Kit
