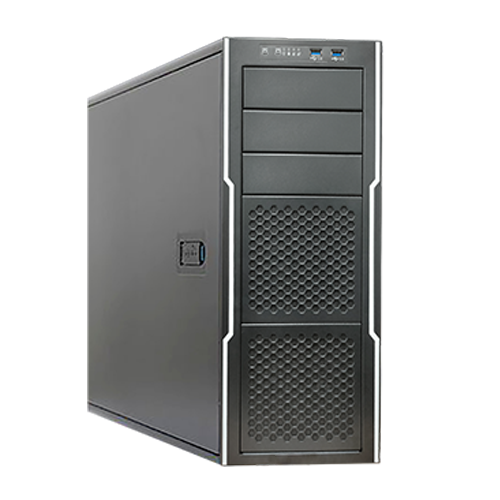

Invento i7015 Series

Salient Features
  • 2nd Gen Intel Xeon Scalable Processor Max up to 205W
  • Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR, 12 DIMMs
  • 3 PCIe Gen.3 x8 slots, 4 PCIe Gen.3 x16 slots
  • 2 x GbE ports (via Intel® I350-AM2)
  • 4 x 3.5" Internal SAS3/SATA drive bays
  • Intel® C621 chipset
  • 500W/ 650W / 750W/ 850W/ 1000W/ 1200W Single Bronze/Gold/Platinum Power Supply (88-92% Efficiency) 80PLUS

Specification

Model i7015
Processor Support 2 x 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Core Logic Intel® C621 chipset
Memory
  • 12 x DIMM slots;
  • Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS
Expansion Slot
  • PCI-E Slots:
    • 4 PCI-E 3.0 x16,
    • 3 PCI-E 3.0 x8
  • M.2:
    • (1) M.2 connector (2242) by PCI-E interface /
    • (1) M.2 connector (2242/2260/2280) by PCI-E interface
RAID Options SATA: Intel® C621 controller for 8 SATA (6 Gbps) ports; RAID 0,1,5,10 (Intel RST)
Drive Bays
  • 4 x 3.5" Internal SAS3/SATA drive bays
  • 3 x 5.25" External Peripheral Bays
  • Optional: 8 x 3.5" Hot Swap HDD Bays
Network Controller 2 x GbE ports(1 port shared with IPMI/ -M SKU only
IPMI
  • IPMI 2.0 compliant baseboard management controller (BMC), Supports storage over IP and remote platform-flash, USB 2.0 virtual hub
  • 24-bit high quality video compression, 10/100/1000 Mb/s MAC interface
Graphics ASPEED AST2400 BMC
Onboard I/O
  • USB: 3 x USB2.0 ports (2 via cable, 1 Type-A), 6 x USB3.0 ports (4 at rear, 2 via cable)
  • Video Output: D-Sub 15-pin VGA port
  • Serial Port / Header: 1 Port (rear)
  • TPM: 1 TPM Header
Cooling Features 3 x PWM Cooling fans
Regulatory
  • Power Supply Safety / EMC:
    • BSMI
    • CCC
    • CE/EMC
Power Supply 500W/ 650W / 750W/ 850W/ 1000W/ 1200W Single Bronze/Gold/Platinum Power Supply (88-92% Efficiency) 80PLUS
Dimension / Form Factor
  • Tower/4U
  • Optional Rackmountable
