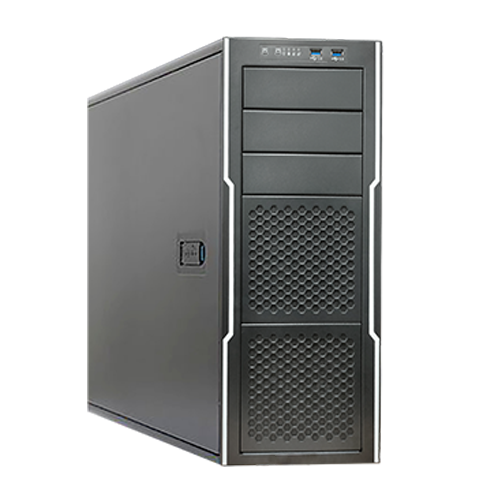

Invento i712 Purley Series

Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM; 16 DIMM slots
4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots; 2 PCI-E 3.0 NVMe x4 Internal Port(s)
7.1 HD Audio
Noise level upto 24 dB(A) 6. 4 x 3.5" SATA Drive bays (Optional 8 Hot-swap 3.5" SAS3/SATA3 drive bays), 1 M.2 slot, 2 NVMe support with opt. cables
650W/ 750W/ 850W/ 1200W High-efficiency Power Supply Gold/Platinum Level Certified

Model	i712
Processor Support	2 X 2nd Gen Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)
Core Logic	Intel® C621 chipset
Memory	16 x DIMM slots Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM Supports Intel® Optane™ DCPMMz
PCIe Expansion Slot	PCI-E: 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 M.2: M.2 Interface: PCI-E 3.0 x4 Form Factor: 2260, 2280, 22110 Key: M-Key 2 PCI-E 3.0 NVMe x4 Internal Port(s)
RAID Options	SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays	4 x 3.5" Internal SAS3/SATA3 drive bays (SATA3 default), Optional 8 Hot-swap 3.5" SAS3/SATA3 drive bays, 1 M.2 slot, 2 NVMe support with opt. cables
Networking	2 RJ45 Gigabit Ethernet LAN ports
Network Controllers	Dual LAN with GbE from C621
IPMI	ASPEED AST2500
Onboard I/O	SATA: 10 SATA3 (6Gbps) ports NVMe: 2 NVMe support with optional cables USB: 6 USB 3.0 ports (4 rear, 2 front), 2 USB 3.1 ports (rear) Audio: 7.1 HD Audio (RealTek ALC888) with optical S/PDIF Video: 1 VGA port Serial Port / Header: 1 COM port (header) DOM: 2 DOM (Disk on Module) ports TPM: 1 TPM 2.0 Header
Power Supply	650W/ 750W/ 850W/ 1200W High-efficiency Power Supply Platinum Level Certified 80PLUS (90% - 94% Efficiency)
Dimension / Form Factor	Tower
Environmental Specification	Operating Relative Humidity:- 8% to 90% (non-condensing) Non-operating Relative Humidity:- 5% to 95% (non-condensing) Operating Temperature :- 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature :- -40°C to 60°C (-40°F to 140°F)
