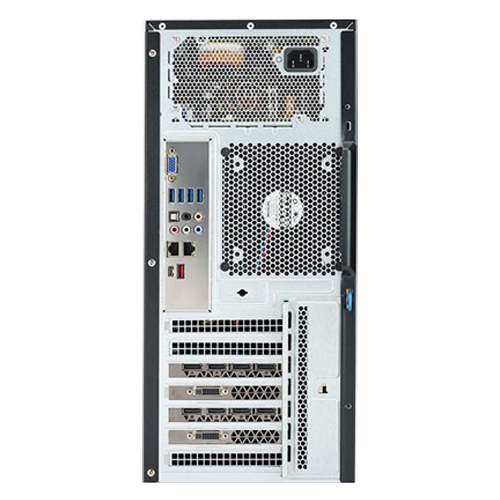

Invento i713 Purley Series

i713

Invento i713 Purley Series

Salient Features
  • Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots
  • 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8 slots
  • 2 x 1GbE LAN ports
  • 4 x Internal fixed 3.5" drive bays, 2 x 5.25" peripheral drive bays
  • 7.1 HD Audio
  • 1 M.2 slot, 2 NVMe support with optional cables
  • 1200W High-efficiency Power Supply Platinum Level Certified

Specification

Model i713
Processor Support 2 X Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
Core Logic Intel® C621 Chipset
Memory
  • 16x DIMM slots;
  • Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz
PCIe Expansion Slot
  • 4 PCI-E 3.0 x16 and
  • 2 PCI-E 3.0 x8 slots
RAID Options SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
Drive Bays
  • 4 x Internal fixed 3.5" drive bays and
  • 2 x 5.25" peripheral drive bays
  • 4x 2.5" fixed drive bays (optional)
Networking 2 RJ45 Gigabit Ethernet LAN ports
Network Controllers Dual LAN with GbE from C621
IPMI ASPEED AST2500
Onboard I/O
  • SATA: 10 SATA3 (6Gbps) ports
  • NVMe: 2 NVMe support with optional cables
  • USB: 6 USB 3.0 ports (4 rear, 2 front), 2 USB 3.1 ports (rear)
  • Audio: 7.1 HD Audio with optical S/PDIF
  • Video: 1 VGA port
  • Serial Port / Header: 1 COM port (header)
  • DOM: 2 DOM (Disk on Module) ports
  • TPM: 1 TPM 2.0 Header
Power Supply 1200W High-efficiency Power Supply Platinum Level Certified (92% efficiency)
Dimension / Form Factor Mid-Tower
