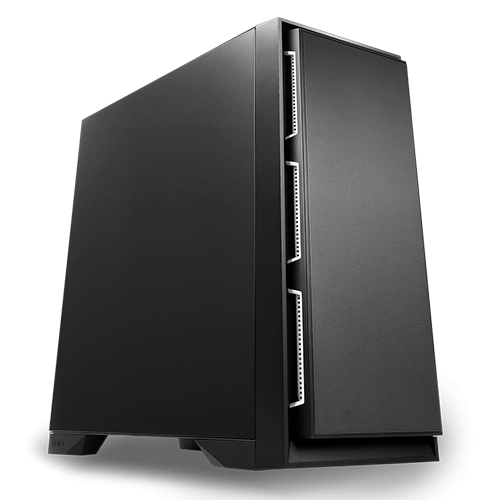

Invento i7137 Series

Invento i7137 Series

i7137

Invento i7137 Series

Salient Features
  • Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  • 1 x PCIe 4.0/3.0 x16 slot, 2 x PCIe 3.0 x1 slots
  • 1 x Intel® 1Gb Ethernet
  • 1 x 5.25" External HDD Drive Bays & 4 x 3.5" Internal HDD Drive Bays
  • ALC 887/897 HD Audio
  • 1 x Optional Front 12cm (1850 RPM) PWM Fan & 1x Rear 12cm (1850 RPM) PWM Fan
  • 500W Bronze/900W Gold Level Certified High-Efficiency Power Supply

Specification

Model i7137
Processor Support
  • 1 X Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Core Logic Intel® Q570
Memory
  • 4 x DIMM slots;
  • Supports 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz
PCIe Expansion Slot
  • PCI-E:
    • 1 x PCIe 4.0/3.0 x16 slot
    • 2 x PCIe 3.0 x1 slots
  • M.2:
    • Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    • M.2_1 slot (Key M), type 2242/2260/2280
    • M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)
Drive Bays
  • 1 x 5.25" External HDD Drive Bays &
  • 4 x 3.5" Internal HDD Drive Bays
Network Controllers 1 x Intel® 1Gb Ethernet
Onboard I/O
  • USB: 4 x USB 3.2 Gen 2 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A), 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Audio: Audio In /Out Jack (Front and Rear)
Cooling Feature
  • 1 x Rear 12cm (1850 RPM) PWM Fan and
  • 1 x Optional Front 12cm (1850 RPM) PWM Fan
Power Supply 500W Bronze /900W Gold Level Certified High-Efficiency Power Supply (80% to 90% Efficiency)
Dimension / Form Factor Tower
